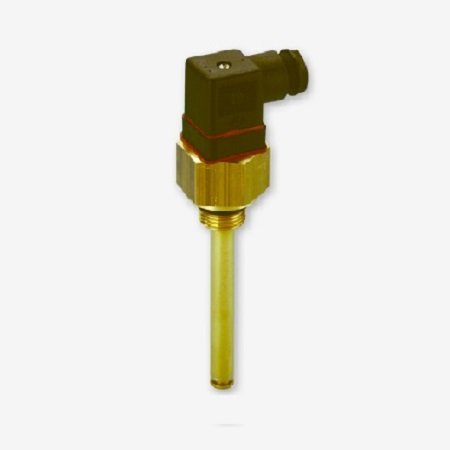

Bimetal temperature switch TSM-Atex, TSE-Atex
Since the viscosity of oil changes based on the temperature, operating temperatures must be monitored. Depending on the requirements, monitoring by means of indicating the minimum temperature to warning points and ending with shut down will suffice. The warning or shut-off points are implemented using a bimetallic switch and in the process, hysteresis can also be used as a reset point. The TSM/TSE series consists of simple electrical equipment. In the case of intrinsically safe connections as per EN 60079-14, the TSM/TSE can be used in Zone 1 (group IIC, device category 2G) explosive areas; this also applies to the inner zone of the tank. The temperature switches are classified as temperature class T4. These temperature switches are designed in a manner, which allows the internal electrical components to be replaced without having to remove the switching tube from the tank. This is convenient if the temperature switch is installed laterally inside the oil.
- ATEX applications: Zone 1 (cat. 2G), simple electrical equipment according to EN 60079-11
- Simple, robust design
- Electrical inner part, easy to remove
- Optionally DIN connector or M12 base connector
- DIN connector cable outlet direction adjustable in 90° steps
- Elastic sealing ring
| Versions: | : TSM-1/TSE1 = with one temperature contact : TSM-2/TSM-2 = with two temperature contacts |
| Switch element: | : Bi-metal |
| Switching function: | : NC = NC contact/NO = NO contact |
| Switching temperature: | : 50 to 80 °C (also see chart) |
| Probe length L max.: | : 1000 mm |
