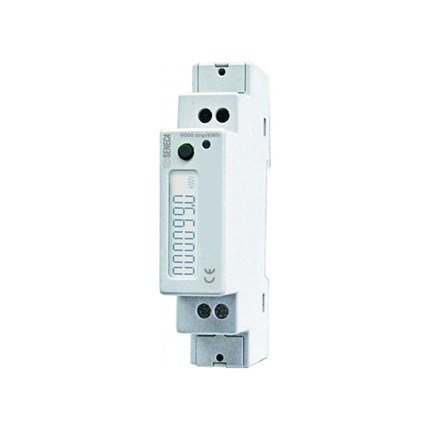

Energy Counter S501-40

The new SENECA energy counters for DIN rail mounting cover the most different application requirements for single-phase and threephase systems. Available with RS485 Modbus, M-BUS or Ethernet + webserver communication interfaces, the energy counters are compliant with MID (2004/22 / EC Directive) in class B with EN 50470 standard. Equipped with Wide backlighted LCD display for easy consultation of the values of energy and power, the counters also make avalilable the diagnostic function signaling polarity errors in the connection.

Talk to Our Experts Download Datasheet

External or built-in communication with optical port.
Supported protocols: ModBUS, Ethernet, M-BUS, Konnex.
For 3 / 4 wires power networks with balanced / unbalanced load.
Current: direct connection or by Current Transformer.
Single phase / Three phase voltage.

Energy totalization for industrial machinery.
Power consumption remote monitoring.
Measurement of energy generated by renewable sources.
Accounting and billing of power consumption.

Power Supply : From voltage circuit
Max consumption : 1,5 VA - 1 W
Degree protection : IP51 (front), IP20 (terminals)
Operating Temperature : -25 to+55°C

Energy Counter S501-40
