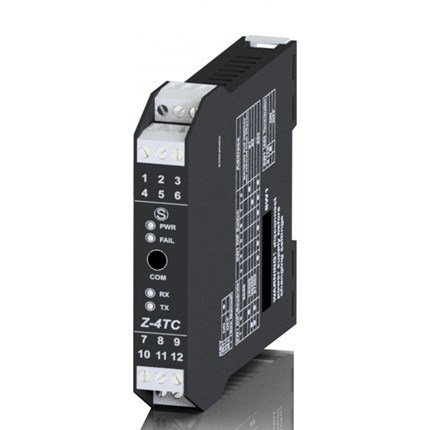

Z-4TC 4-CH Thermocouple /MV Input Module / RS485 Modbus RTU

The Z-4TC module acquires up to 4 single-ended signals (voltage-type, from the: signal generator or thermocouple) and it converts them to a digital format using the Modbus RTU Protocol. A double serial interface (RS232 or RS485) it’s also available (Modbus RTU protocol).

Talk to Our Experts Download Datasheet

Internal Cold Junction compensation
Easy configurable by free configuration software ”Easy Setup”
RS485 serial communication with MODBUS-RTU protocol, maximum 32 nodes.
RS232 serial communication with Modbus RTU protocol for registers access and configuration
Measuring mode Thermocouples or Voltage

Configuration of a filter applied to each input signal
Possibility to disable the automatic detection of thermocouple interruptions (to decrease the measure error of the acquired signals from the thermocouples)
Possibility to add/remove the module to/from RS485-bus without disconnecting the communication or power supply
Easy-wiring of power supply and serial bus by means of the bus housed in the DIN rail.

Output Number : 4 Resolution : 16 bits (15+1 sign)
Configurable between : 0(no filter is applied), from 1(min) to 6(max)
Accuracy Initial : 0.1% of E.E.S.(Electrical End Scale)
