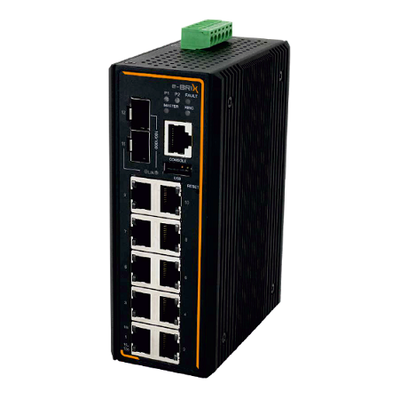

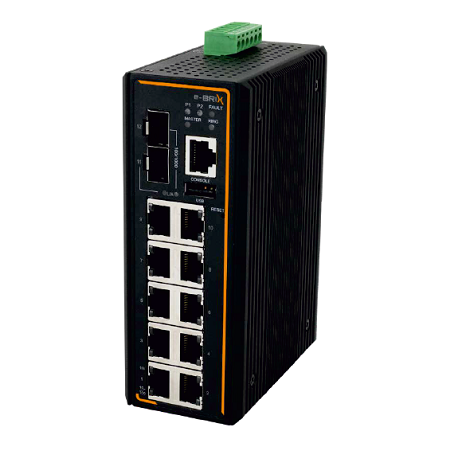

12-Port Industrial Gigabit Managed Ethernet Switch

12-Port Industrial Gigabit Managed Ethernet Switch 10*10/100/1000Tx + 2*100/1000 SFP Slot, 12-48VDC Power Inputs

Talk to Our Experts Download Datasheet

  • 10-port 10/100/1000Tx Gigabit Ethernet
  • 2-port 100/1000 SFP Slot
  • Configuration: Web GUI, Serial Console, CLI Command
  • Network Redundancy support: G.8032 ERPS,RSTP,MSTP
  • Redundant Power Inputs Design, 12-48VDC
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting, Wall Mounting
  • Operating Temperature Range – STD: -10°C ~ 65°C, EOT: -40°C ~ 75°C

  • Supports IGMP v1/v2, up to 256 groups
  • Supports Storm Protection for Broadcast, Multicast, and Unicast frames
  • Supports IEEE802.1p QoS and CoS/ToS
  • Supports IEEE802.1Q VLAN, SNMP v1/v2c/v3
  • System Warning setting for automatic warning through E- Mail

  • Wavelength : Depends on SFP modules RS232
  • Serial Console : 1*RS232 in RJ45 connector with console cable, baud rate 115200bps,8,N,1
  • Configuration Backup : 1*USB 2.0 for firmware update, configuration backup/restore/boot up and syslog
  • Input Voltage : 12-48VDC, Redundant Inputs
  • Overload Current Protection : Yes
  • Reverse Polarity Protection : Yes
  • Power Consumption : 15 Watts for System
  • Housing : Metal, IP30 protection
  • Dimensions : 54 x 142 x 99 mm (W x H x D)
  • Weight : Unit Weight: 0.9 kg, Shipping Weight: 1.3 kg
  • Mounting : DIN-Rail Mounting, Wall Mounting
  • Operating Temperature : STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature : -40°C ~ 85°C (-40°F ~ 185 °F)
  • Operating Humidity : 5 to 95%, (non-condensing)
  • EMI : FCC Part 15 Subpart B Class A, CE EN 55022 Class A
