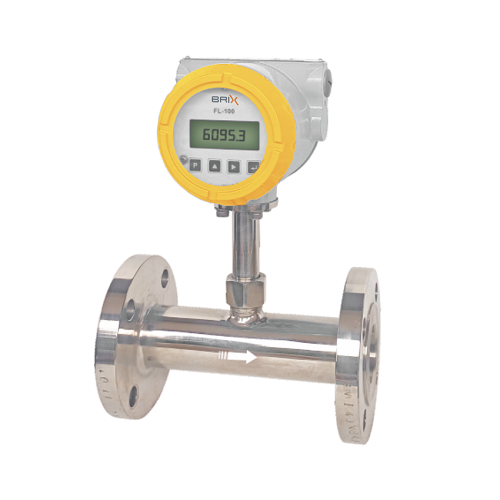

2 Wire Turbine Flow Meter with LCD Display – FL-100

Brix series FL-100 are 2 wire turbine flow transmitters specially used for various industrial applications. The flowing media engages a vaned rotor causing it to rotate at an angular velocity proportional to flow rate. The pick up coil senses the spinning motion of the rotor inside the pipe & converts it into a pulsating electrical signal. Summation of the pulsating electrical signal is directly related to the total flow. The frequency is linearly proportional to flow rate which is converted to electrical signal 4 – 20 mA .

Talk to Our Experts Download Datasheet

  • 2 Wire System
  • Simple & Cost Effective Construction
  • Local LCD Display
  • Suitable for Conductive and Non-Conductive Liquids
  • Electronics Protection Class : Weatherproof IP 65, IP 67
  • Easy Maintenance

  • Media : Liquids
  • Electronics : Integral (Local) / Remote
  • Type of Output : 4 to 20mA DC
  • Power Supply : 24V DC Two Wire Loop Powered
  • Ambient Conditions : Temperature -20 to 75°C / Humidity 5 to 95% non condensing
  • Certification : CE
