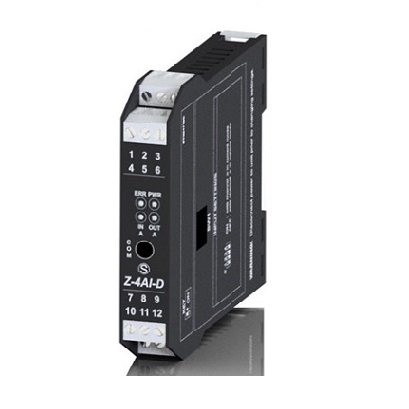

4-CH DC current-voltage A/D convert er Z-4AI-D
Z-4AI-D allows to acquire up to N.4 analogue inputs (ma or V) through a PLC with only digital input/output. The PLC interface is based on three PNP-type signals suited for connection to most PLCs available in the market.
The interface is composed of a CLOCK signal generated by the PLC (transistor output), a DATA signal and STROBE signal generated by the module.
- The interface is composed of a CLOCK signal generated by the PLC (transistor output), a DATA signal and STROBE signal generated by the module.
Z-4AI-D allows to acquire up to N.4 analogue inputs (ma or V) through a PLC with only digital input/output. The PLC interface is based on three PNP-type signals suited for connection to most PLCs available in the market.
|
Power supply
|
: 19..40 Vdc / 19..28 Vac / 50-60 Hz
|
|
Power transducers
|
: yes
|
|
Dimension
|
: (W x H x D) 17.5 x 100 x 112 mm
|
|
Protection degree
|
: IP20
|
