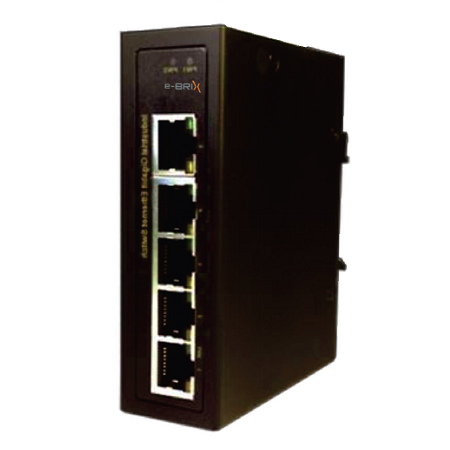

5-Port Industrial Unmanaged Ethernet Switch

5-Port Industrial Ethernet Switch 5*10/100Tx, 12-56VDC Power Input

Talk to Our Experts Download Datasheet

  • 5-port 10/100Tx Fast Ethernet
  • Redundant Power Input Design, 12- 56VDC
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting
  • Operating Temperature Range : -10°C ~ 65°C

  • 5-port 10/100Tx Fast Ethernet
  • Redundant Power Input Design, 12- 56VDC
  • IP30 Rugged Metal Case Design
  • DIN-Rail Mounting
  • Operating Temperature Range : -10°C ~ 65°C

  • Input Voltage: 12-56V DC, Single Power Input
  • Overload Current Protection: Yes
  • Reverse Polarity Protection: Yes
  • Power Consumption: 3.76W@56 V DC full load
  • Housing: Rugged Sheet Metal, IP30 protection
  • Dimensions: 103.5 x 32 x 81.5 mm (L x W x D)
  • Weight: Unit Weight: 0.5kg, Shipping Weight: 0.7kg
  • Mounting: DIN-Rail Mounting
  • Operating Temperature: STD: -10°C ~ 65°C (14°F ~ 149°F)
  • Storage Temperature: -40°C ~ 85°C (-40°F ~ 185 °F)
