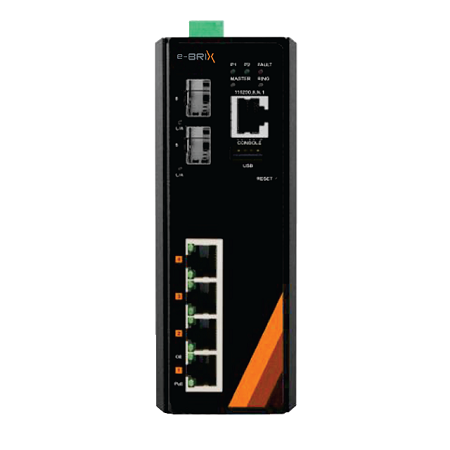

6-Port Industrial Gigabit PoE+ Managed Ethernet Switch

6-Port Industrial Gigabit PoE+ Managed Ethernet Switch 4*10/100/1000Base-TX with 4*PoE-PSE(30W/Port) + 2*100/1000 SFP Slot

Talk to Our Experts Download Datasheet

4-port 10/100/1000Base-T(X) Ethernet with IEEE 802.3af/at compliant PoE, 30W/port 2-port 100/1000 SFP slots Multiusers account for security Configuration: http, https, CLI Command, Telnet, SNMP, SSH Network redundancy support: G.8032 ERPS v2/ STP/ RSTP/ MSTP PoE ping alarm function for PoE ports power recycle Redundant power inputs design Operating temperature range – STD: -10°C ~ 65°C

Supports Static routes for routing function Supports RADIUS, TACACS+ authentication protocol Supports QoS, LACP bandwidth control Supports VLAN, SNMP v1/v2c/v3, ACL, IP source guard for Ethernet security

RJ45 Ports:	410/100/1000 Base-T(X) with 4PoE-PSE(30W/Port) Auto-Negotiation, Full/Half Duplex, Auto-MDI/MDI-X
Fiber Ports:	2*100/1000 SFP slots
Input Voltage:	Dual 48-55VDC redundant power inputs
Overload Current Protection:	Yes
Reverse Polarity Protection:	Yes
Power Consumption:	Max. 7.5W full loading
Housing:	Metal, IP30 protection
Dimensions:	54 x 142 x 99 mm (W x H x D)
Weight:	Unit Weight: 0.95kg, Shipping Weight: 1.25kg
Mounting:	DIN-Rail Mounting, Wall Mounting
Operating Temperature:	STD: -10°C ~ 65°C (14°F ~ 149°F)
Storage Temperature:	-40°C ~ 85°C (-40°F ~ 185 °F)
Operating Humidity:	5 to 95%, (non-condensing)
EMI:	FCC Part 15 Subpart B Class A, CE EN55022/EN61000-6-4 Class A
EMC / EMS:	CE EN55024/EN61000-6-2 Class A: IEC61000-4-2 (ESD), IEC610 00-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC610 00-4-8 (Magnetic Field)
Free Fall:	IEC600 68-2-32
Shock:	EN 60068-2-27
Vibration:	EN 60068-2-6
Green:	RoHS Compliant
