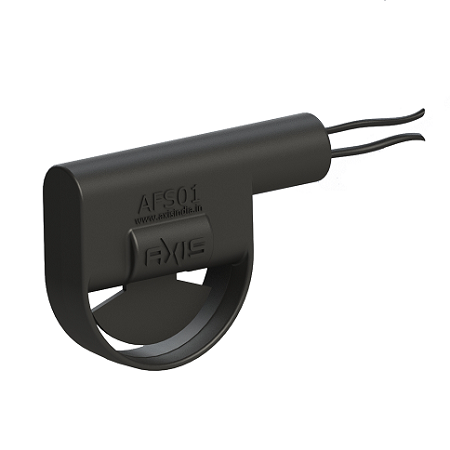

Air Flow Switch (AFS01)

Axis air flow monitor provides reliable source to monitor positive or negative air flow of compact fans or filter fans. Proper installation and connection with an optical LED or low audible signal device, a bi-direction air flow monitor will activate – deactivate an electrical contact if the air flow of the fan falls below 0.8 m/s , thus either turning the signalling device on or of Recommended Use: Normally used to turn an alarm or signalling device On to indicate loss of air flow

Talk to Our Experts Download Datasheet

Very Economical
Reliable size
Reliable Mechanical Switch contact
Easy for maintenance
Easy for installation via clip or clamp
Multipurpose fields of application

Contact rating ( Max. ) : 10W or 10 VA ( resistive load ) Switching Voltage ( Max. ) : 180 VDC / 130 VAC Switching current ( Max. ) : < 0.5A for VDC / < 75mA for VAC Initial Contact Resistance ( Max.) : 150 mΩ Operating / Storage Temperature : -40°C to +70°C

Air Flow Switch (AFS01)

Features

Specifications
