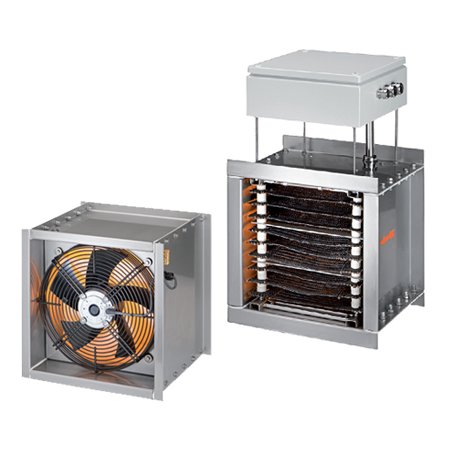

Air Heater Type 800

Air heaters Type 800 are electric heater batteries for installation in existing ducts mainly in drying equipment and in the thermal process technology. Heating is provided by CSN® heat grids that are installed vibration and shock resistance. The absorbed energy is converted directly into heat, without the inertia, very common, for example, with tubular heating elements. The large heat-generating surface ensures a good heat transfer to the flowing air.

Talk to Our Experts Download Datasheet

  • Kilowatt rating:  up to 100 kW
  • Air outlet temperature: max. 200°C
  • Airflow velocity

  • Air duct in stainless steel 1.4301 (AISI 304), optionally in painted steel CSN® heating grid of temperature-resistant ceramic or glass fiber Terminal enclosure in steel, powder-coated RAL 7035 degree of protection IP 00.

  • Type : 800/ 6
  • Output : 6KW
  • Cross Section : 350 x 350mm
  • Length : 500 mm
