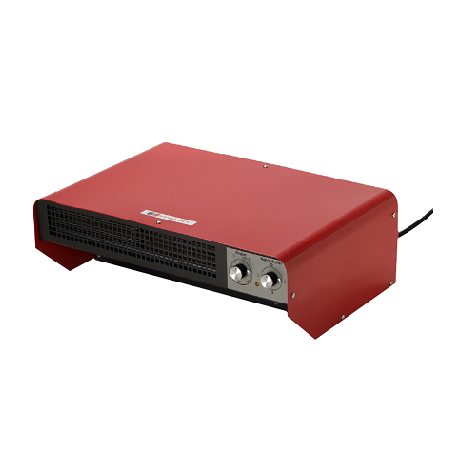

Air Heater Type 841
Application for air heater type 841: E.g. punctiform heating of working places, thermal shielding at doors, heating of building containers, and dressing rooms. Consisting of a sheet steel housing, built-in high-capacity heating elements, not brought to red heat an axial-flow fan.
- Including indicating lamp and robust rotary switch.
- Position 0 = off
- Position 1 = 1/3 power
- Position 2 = 2/3 power
- Position 3 = 3/3 power
- On the rear of the air heater a 5-core feeding cable of
- 3 m length with plug is provided for.
- Voltage: 400 V A.C.,three-phase (with neutral conductor).
- Installation: in all position
| Type | : 841/6 |
| Power | : 6kW |
| Length | : 495mm |
| Width | : 365mm |
