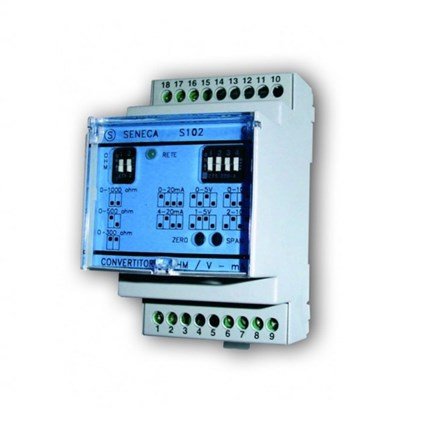

Alalogue Signal COnverter S102

Converter for signals in ohm. The instrument converts a resistance signal into a signal in Volt or mA. Used to convert the position signal detected by means of a potentiometer. Selection of input signal from 3 different scale ends - 300, 500 or 1000 ohm - via dip switches on the front panel.

Talk to Our Experts Download Datasheet

Via the dip switches on the front panel it is possible to select current output 0 - 20 mA and 4 - 20 mA (with both active and passive connection) or voltage output 0 - 5 Vdc, 1 - 5 Vdc, 0 - 10 Vdc and 2 - 10 Vdc

The front panel features the LED for signaling power on. The self-extinguishing Noryl case is the width of 3 DIN modules and is designed to fit on a 35 mm mounting rail (DIN 46277).

  • Power supply : 115 / 230 Vac +/- 10% 50 / 60 Hz
  • Power consumption : 1,5 VA
  • Exciting current : 1,8, 3,6 and 6 mA depending on the range selected
  • Current output : selectable via DIP-switches between 0-20 and 4-20 mA
  • Voltage output : selectable via DIP-switches between 0-5, 1-5, 0-10 e 2-10 Vdc
  • Precision : 0,2%
  • Stability : +/- 0,01% / °C
