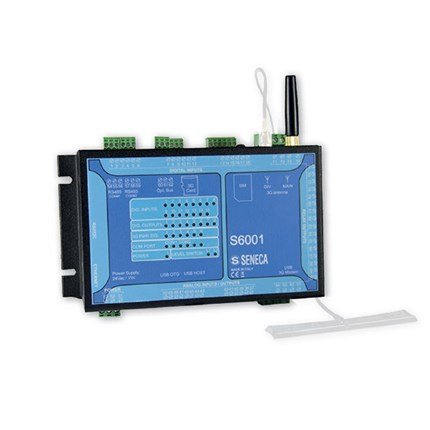

All-In-One Remote Telemetry And Control Units S6001-RTU
The S6001-RTU is a compact all-in-one telecontrol unit with 31 channels. Thanks to the extended connectivity (3G +, Ethernet, Serial) the unit is expandable and can be interfaced with other systems through the support of protocols (ModBUS TCP-IP, ModBUS RTU) and allows communications to and from central units and the remote monitoring of the plants. Using the IEC 61131 Soft Logic on Straton platform, S6001-RTU can be used as a stand-alone control system.
Features of compactness and technological concentration of the S6001-RTU allow a significant reduction in costs and an optimization of intervention times in remote control applications for water and general purpose networks.
- Automation of water pumping stations
- Energy monitoring
- Maintenance Optimization Services
- Reduction operational costs
- All-in-one RTU range for multi-sector telecontrol applications
- 3G +, Ethernet, Serial communication
- 24/7 Remote control installations
- Archiving and sending data with VPN / SSL security technology
- Real-time management via SMS / email and alarm history
|
Power supply
|
: 24 Vac/dc
|
|
Power consumption
|
: 10 VA max, 6 VA (typical)
|
|
Removable terminals
|
: 0,2..2,5 mm2 (AWG 24-12)
|
|
Isolation
|
: 1.500 Vac
|
|
Protection degree
|
: IP20
|
