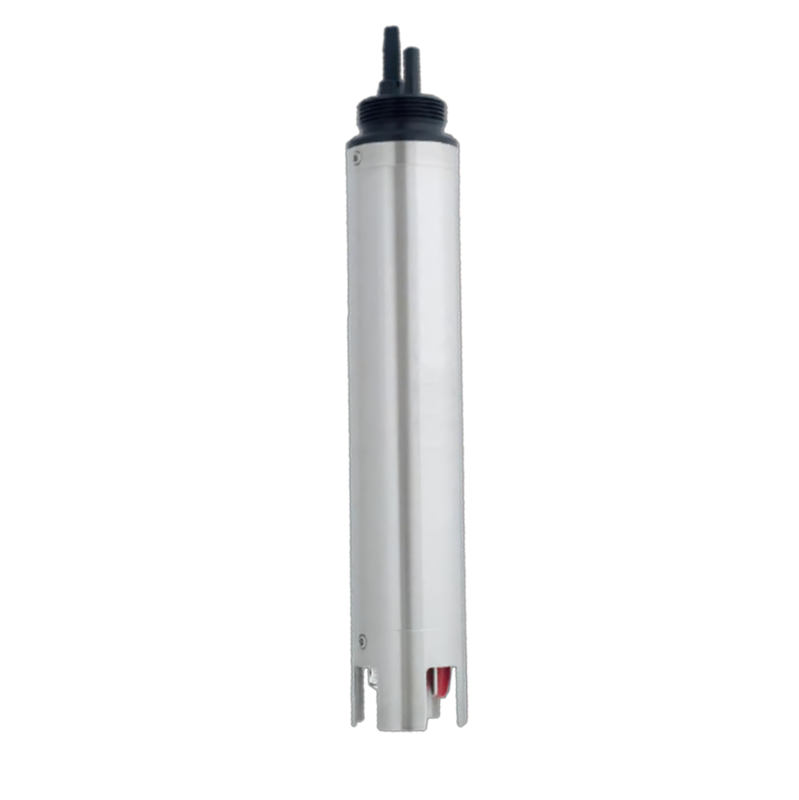

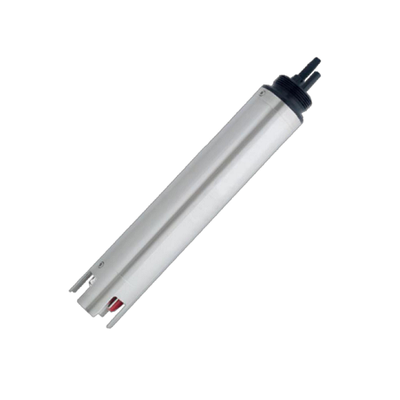

Ammonium/ Nitrate Sensor
he SMART ABAM - Ammonia Sensor measures the concentration of dissolved Ammonia nitrogen (NH4+-N) in water. The sensor uses three electrodes to determine the NH4+-N concentration, an Ammonia Ion Electrode, a Potassium Ion Electrode, and a pH Electrode.
The SMART ABNO - Nitrate Sensor measures the concentration of dissolved nitrate-nitrogen (NO3--N) in water. The sensor uses two electrodes to determine the NO3--N concentration, a Nitrate Ion Electrode and a Chloride Ion Electrode.
The SMART ABAM/ABNO sensor has a 1-1/2” NPT rear-facing thread for attaching an extension/immersion tube for easy installation from catwalks or handrails. The ABNO sensor is submersible with an IP68 degree of ingress protection. (The SMART ABAM sensor can not support its weight by the attached cable)
A removable electrode guard facilitates easy electrode replacement when necessary. The sensor features an internal digital signal conditioning unit that allows the sensor to be mounted up to 300 meters from the controller
- ABAM Ammonia Sensor: - Ammonia ISE electrode, K+, pH, and Temp. electrodes. - Fast and accurate Ammonia measurement - Fully compensated for pH, K+ interferences & Temperature
- ABNO Nitrate Sensor: - Nitrate ISE electrode, Cl- and Temp. electrodes - Fast and accurate Ammonia measurement - Fully compensated for Cl- interferences & - Temperature (Optional pH electrode)
- The Ammonia/Nitrate Sensor is optional for both Ammonia & Nitrate measuring at the same time
- Robust & waterproof (IP68)
- Factory pre-calibration for easy set up and field calibration for more accuracy
- Rugged PVC design, Removable electrode guard for easy maintenance
- Integral Spray Head Cleaner, Cleans the sensor in-situ with pressurized water or air
- Internal Signal Conditioning, RS485 Modbus Digital signals allow up to 300 meters long communication between the Sensor and the controller
| Measuring Principle | : Ion-selective electrodes method |
| Operate Pressure | : Max. 0.5 bar |
| Pressure | : Max. 6 bar |
| Material | : SS316, PVDF, PTFE, Glass |
