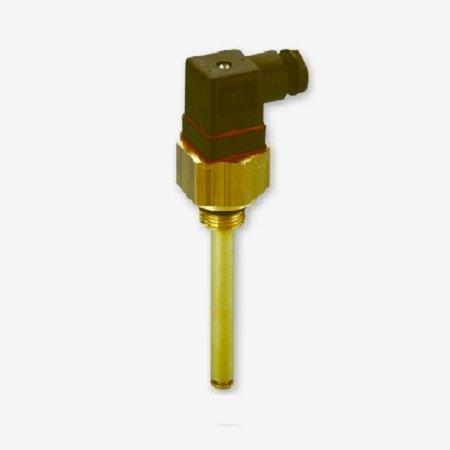

Bimetal temperature switch TSK-Atex

Since the viscosity of oil changes based on the temperature, operating temperatures must be monitored. Depending on the requirements, monitoring by means of indicating the minimum temperature to warning points and ending with shut down will suffice. The warning or shut-off points are implemented using a bimetallic switch and in the process, hysteresis can also be used as a reset point. The TSK-Atex series consists of simple electrical equipment. In the case of intrinsically safe connections as per EN 60079-14, the TSK-Atex can be used in Zone 1 (group IIC, device category 2G) explosive areas; this also applies to the inner zone of the tank. The temperature switches are classified as temperature class T4. The temperature switch was designed to allow removing the electrical inner workings without having to remove the switching tube from the tank. This is convenient if the temperature switch is installed laterally inside the oil.

Talk to Our Experts Download Datasheet

  • ATEX applications: Zone 1 (cat. 2G), simple electrical equipment according to EN 60079-11
  • Simple, robust design
  • The electrical inner part, easy to remove

  • Optionally DIN connector or M12 base connector
  • Outlet direction adjustable in 90° steps
  • Elastic sealing ring

  • Versions: : TSK-1 = with one temperature contact : TSK-2 = with two temperature contacts Switch element: : Bi-metal Switching function: : NC = NC contact/NO = NO contact Switching
  • temperature: : 45 to 80 °C (also see chart)
  • Probe length L max.: : 1000 mm

See Related Products

Level switch NS 64/NS 100 ..-AM

Level switch NS 64/NS 100 ..-AM

Pressure sensors/pressure switches Pressotronik

Pressure sensors/pressure switches Pressotronik

Level Switch for external Installation NS 1-G1/2-AM

Level Switch for external Installation NS 1-G1/2-AM

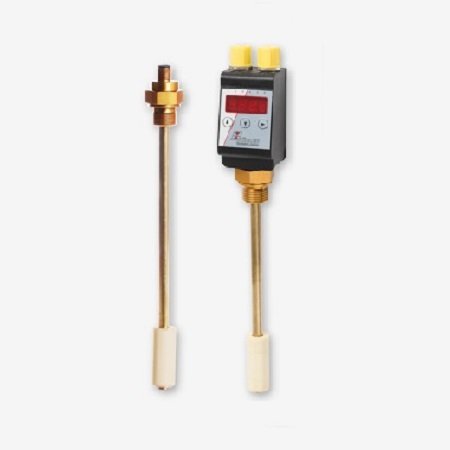

Level- and Temperature Switch Nivovent NV 74, NV 74D
