Brix series LCT-01 are capacitance type level transmitters. Vessel wall & probe forms two electrodes. If vessel is of non conductive material, the probe will be double rod type. The distance between electrode & surface area of electrodes remain unchanged. The variable is the depth of the material being measured which represents the dielectric constant between two electrodes. Air & vacuum have relative dielectric constant as 1 & that of liquids, it is greater than 1. The capacitance of the capacitor therefore depends on how much material lies between the probe & vessel wall i.e. Whether the probe is covered with or free from material. The capacitor changes with change in level of the material & provides corresponding 4-20 mA DC continuous output.

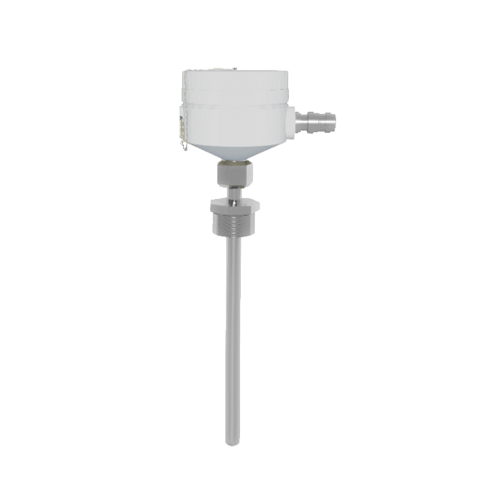

Capacitance Level Transmitter - LCT-01
- Electronics Protection Class : Weatherproof IP 65, IP 67
- Trouble free operation of conductive / non conductive Liquids, slurries
- Two Wire System
- 4-20mA DC Output
- Probe Length : 1) Up to 2 mtr. -Rod Type
- Type of Output : 4 to 20 mA DC, 2 Wire
- Process Temperature : 100°C max
- Process Pressure : 10 kg/cm max
- Probe MOC : SS 316
- Power Supply : 1) 24 V DC (+/- 10%)
- 2) 24V DC 4 to mA Current Loop Powered
- Mounting : Top of the tank
- Operating Conditions : Temperature 0 to 75°C / Humidity 5 to 95% non condensing at 25°C
