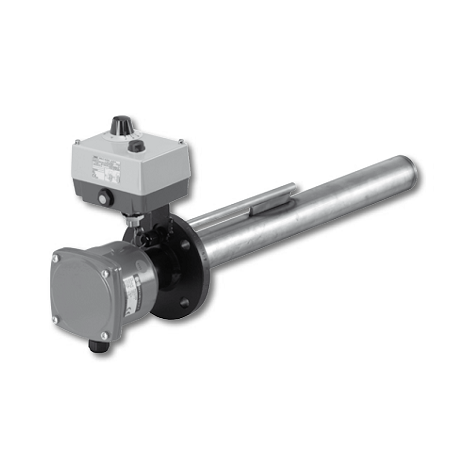

Cartridge Type Heating Elements

The CSN®-cartridge type heating elements and bath heaters are manufactured for nominal voltages from 110 up to 690 volts D.C. and A.C. In the case of higher heating capacities 3 or more elements each, being individually divisible by the factor 3 can be star or delta connected to 230 and 400 volts A.C. three-phase mains. At 12 kW and a related length, the elements are fabricated for 400 volts A.C. three-phase delta connections. In any case, the desired voltage and type of currency have to be stated.

The capacity, indicated in the schedules by 3 watts/cm2 loading of the pipe surface area intended for water and liquids similar to water or thin-bodied oil respectively up to 100 °C. In the event of higher temperatures or other media, the surface load is reduced.

Talk to Our Experts Download Datasheet

  • These cartridge type heating elements can be installed in existing pipes of copper, steel and special steel.
  • The heating elements consist of ceramic carrier with high electrical insulatating values.
  • A high-quality heta-proof electric resistance wire of helical shape is embedded in the slots.
  • Any collapse of the heating conductors will be avoided in the case of a horizontal arrangement.

  • These cartridge type heating elements can be installed in existing pipes of copper, steel and special steel.
  • The heating elements consist of ceramic carrier with high electrical insulatating values.
  • A high-quality heta-proof electric resistance wire of helical shape is embedded in the slots.
  • Any collapse of the heating conductors will be avoided in the case of a horizontal arrangement.

  • Steel : St. 35
  • Special steel : W.-Nr. 1.4541 W.-Nr. 1.4571
  • Lead : with rectangular brackets, also available (Art.- No. 010160001) with controller equipment
  • Control range : 0 up to +100 °C
