Compact Thumbwheel Thermostat STO 011 / STS 011

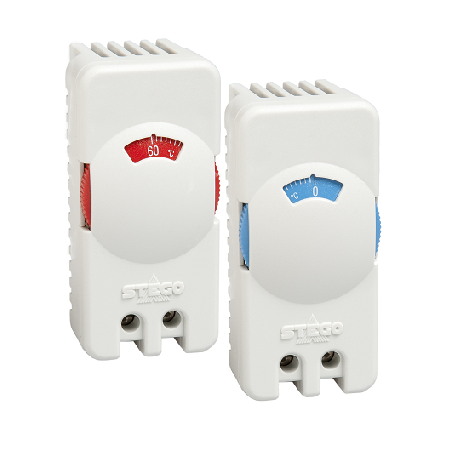

The ST 011 thermostat is an SPST regulator with small hysteresis. The housing design ensures optimized air circulation around the sensor element. Thermostat NC (normally closed): Thermostat opens on temperature rise (red thumbwheel) – for regulating heaters or for switching signal devices when the temperature has fallen below the minimum value. Thermostat NO (normally open): Thermostat closes on temperature rise (blue thumbwheel) – for regulating filter fans, heat exchangers, cooling devices, or for switching signal devices when temperature limit has been exceeded.
- Adjustable thumbwheel setting
- Compact design
- Small hysteresis
- High switching capacity
- DIN rail mountable
- Adjustable thumbwheel setting
- Compact design
- Small hysteresis
- High switching capacity
- DIN rail mountable
|
Switching difference
|
: 7 °F (4 K) ± 5.4 °F (3 K) tolerance
|
|
Sensor element
|
: Thermostatic bimetal
|
|
Contact type
|
: Snap-action contact
|
|
Dimensions
|
: 2.76 x 1.3 x 1.65” (70 x 33 x 42 mm)
|
|
Connection
|
: 2-pole terminal, clamping torque 1 Nm max.: solid/stranded1 wire - AWG 14 max. (2.5 mm²)
|
|
Housing
|
: Plastic, UL 94V-0, light grey
|
|
Storage temperature
|
: -49 to +176 °F (-45 to +80 °C)
|
|
Protection class
|
: IP20
|
|
Approvals
|
: UL File No. E164102, VDE, GOST-R
|
