Miniature Header (MH1)

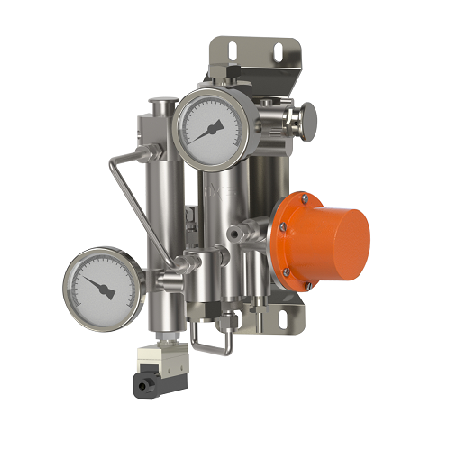

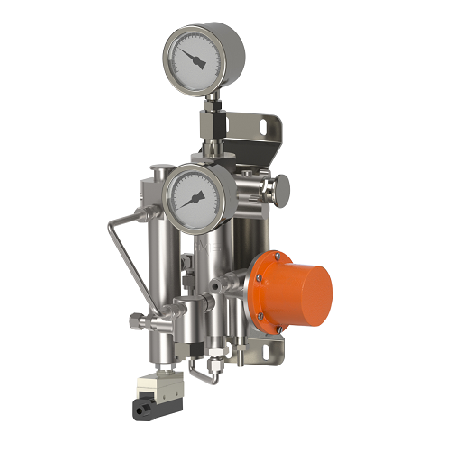

AXIS represents numerous types of components covered in a single manifold. manifold is designed for Steam and Water Analysis System (SWAS) applications. The manifold features a horizontal body design. Manifold connections include NPT female thread. The flow of sample through an AXIS manifold is controlled by filtering the sample, over temperature protection, process chamber, measuring the temperature and pressure, and maintaining the back pressure by this Miniature Header. Each component has a specific function to maintain the back pressure and protection over high sample temperatures.

Talk to Our Experts Download Datasheet

  • Designed for SWAS System application
  • Suitable for long service in high temperature and pressure
  • Easy to install with NPT thread
  • Heavy duty, rugged bodies with extra heavy bore
  • No-leak joints

  • An integrated single unit consists of the strainer, process header, needle valve with drain, TI, PI, and temp control (ASV/SOV-Switch)
  • Reduces the size of the mounting plate
  • Reduces the cost of tubing, fitting, mounting space, no. of components, timing, hardware, and labor.
  • Maintenance free
  • Easy replacement of all components
  • Cleaning port available
  • Single SS material option ensures high reliability of the component
  • No. of joints is reduced so no more leakages in the system

  • Sample : Water Material : SS 316
  • Pressure : 30 Kg/cm² Max.*
  • Mounting : Horizontal Line Mounting
  • Dimensions : Refer Datasheet
