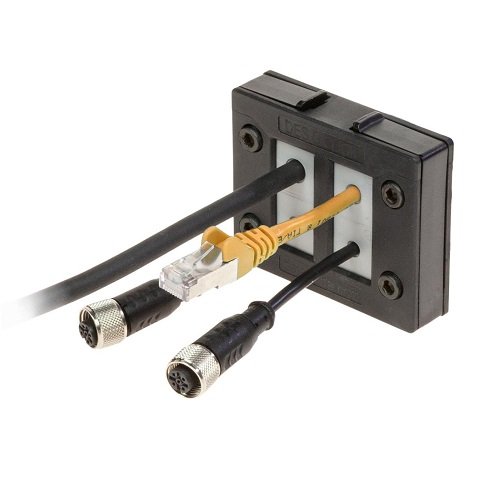

DES Q CLICK

The DES Q CLICK splittable frame allows to accomodate up to 16 cables with or without connectors with diameters from 2 to 32 mm.The frame is firmly closed with two side hooks. The same frame accepts 4 small  grommets or 1 big grommet.

Talk to Our Experts Download Datasheet

  • Can be used with small and large grommets
  • Without screws, snap closure
  • Strain relief according to EN 62444
  • Compact dimensions
  • IP54 protection
  • External gasket included
  • Threaded inserts version on request
  • UL94-V0 for black and grey grommets

  • Material: PC+GF
  • Flammability: self-extinguishing according to UL94-V0
  • Temperature: -40°C... +155°C (static)
  • Features: halogen-free, silicone-free,flame class V0 both colors, comply with ASTM IRM 903 , UL 157
