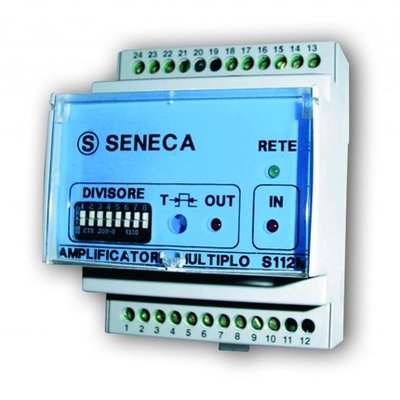

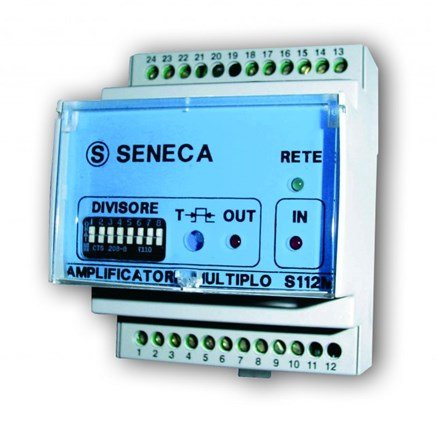

Digital Signal Processor S112D
Module for conversion of a current or voltage analogue signal into a frequency (pulses) directly proportional to the signal applied. Widely used as an "integrator" for totalizing, with a pulse counter, flow rate signals generated by meters with analogue output signal.
- INPUT: programmable via dip switches for 0 - 20 mA and 4 - 20 mA current (with both active and passive connection) or for 0 - 5 Vdc, 1 - 5 Vdc, 0 - 10 Vdc and 2 - 10 Vdc voltage.
- INTEGRATION CONSTANT programmable for scale end from 1 pulse every 27 minutes to 20 pulses per second.
- EXTREMELY SIMPLE CALIBRATION only requiring the use of an ordinary digital tester.
- Two signaling LEDs on the front panel indicate power on and output pulse.
- The self-extinguishing Noryl case is the width of 3 DIN modules and is designed to fit on a 35 mm mounting rail (DIN 46277).
|
Power supply
|
: 115 / 230 Vac +/- 10% 50 / 60 Hz
|
|
Power consumption
|
: 1,5 VA
|
|
Stability
|
: +/- 0,005% / °C
|
|
Operating temp.
|
: 0 / + 50 °C
|
