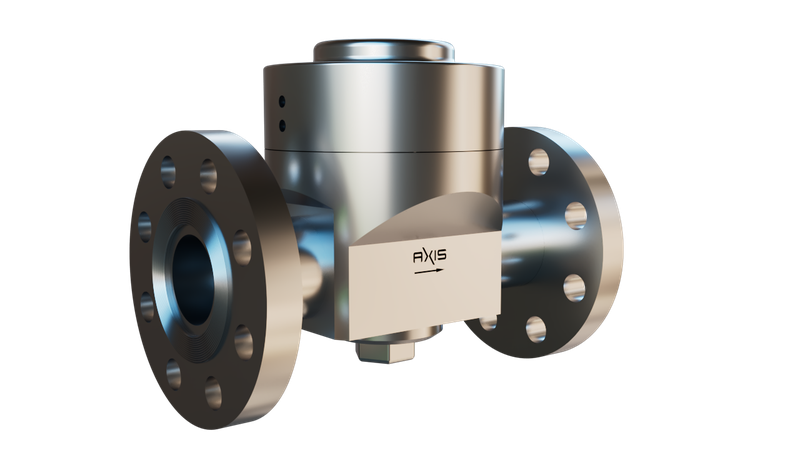

3D Model

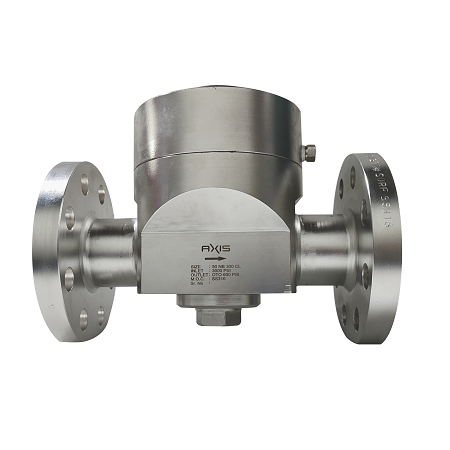

Dome Loaded Pressure Regulator (DLPG)

Axis Dome loaded Pressure regulator is designed to deliver continuous & precise control to the further system. It is a single stage pressure control regulator. It is mainly used in instrumentation & processing system for all types of Gas media applications. Used in Oil and gas refineries, power, chemical, and any type of process industries Many features of the dome loaded pressure regulator which makes it suitable for a variety of application. It can be used for gasses like, O2, N2, Ar, H2,C2H2, CO2, N2O and many more. It has a wide operating range of up to 400 bar and up to 170°C media temperature can be sustained.

Talk to Our Experts Download Datasheet

  • Diaphragm sensing
  • Large dome for improved stability
  • Less Maintenance
  • Dome-to-outlet pressure ratio is approximately 1:1
  • Balanced poppet design
  • Pilot regulator for improved performance

  • Used up to 400 bar and 170°C media temperature
  • Highly reliable for continuous operation
  • Designed for precise control output

  • Dome : SS 316, BRASS
  • Fasters : SS Dome
  • plate : SS 316, BRASS
