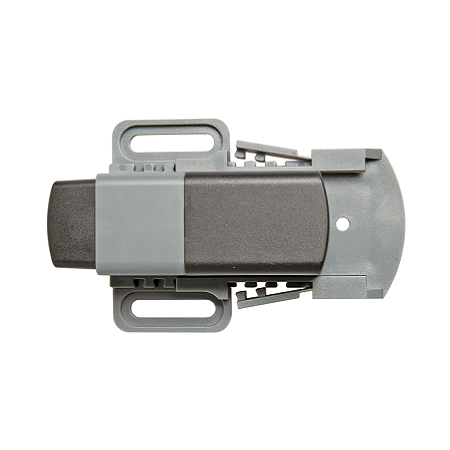

Door Switch DS013
The door switch monitors the position of cabinet doors and is available in three versions. For example, it can be used for switching a light when opening a door (NC), or to activate a fan when closing a door (NO). The version with change-over contact (CO) can be used as a normally closed and/or normally open contact. The wide mechanical adjustment range of the door switch DS 013 offers versatile mounting: the housing is adjustable within a 1-3/8" (35 mm) range, while the screw flange with a slotted hole offers an additional 13/16" (21 mm). The travel of the switch itself is another 5/16" (8 mm).
- Tool-free adjustable switch positioning
- Strain relief, suitable for range of cable diameters
- High switching capacity
- Suitable for lamp LED 025 and other devices
- Tool-free adjustable switch positioning
- Strain relief, suitable for range of cable diameters
- High switching capacity
- Suitable for lamp LED 025 and other devices
|
Max. switching capacity
|
: 10 A resistive / 1.5 A inductive @ AC 250 V
|
|
Connection
|
: 4-pole clamp with strain relief, clamping torque 0.5 Nm max
|
|
Housing
|
: Plastic according to UL 94V-0, grey/black
|
|
Mounting
|
: M5 screws
|
|
Operating temperature
|
: -4 to +185 °F (-20 to +85 °C)
|
|
Operating humidity
|
: Max. 90 %RH (non-condensing)
|
|
Dimensions
|
: 3.4 x 2.5 x 1.2" (87 x 64 x 30 mm)
|
|
Approvals
|
: UL + VDE intended
|
