Dual stabilized power supply S200
Dual stabilized power supply with + 15 Vdc 350 mA and - 15 Vdc 75 mA outputs.
115 / 230 Vac mains input. Used industrially for powering instruments that require dual stabilized power supply at ± 15Vdc.
The input is protected against line over-voltages by means of a varistor. The insulation between the mains and low voltage circuits is 4500 Vac. The outputs are self-protected against short circuits.

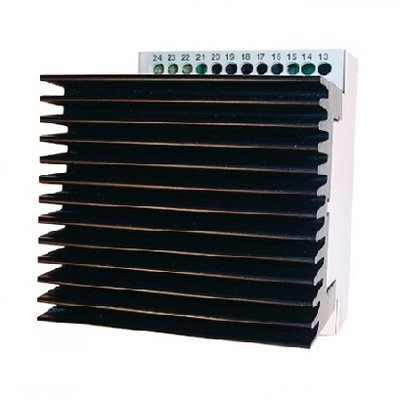

The self-extinguishing Noryl case is the width of 4 DIN modules, with heatsink on the upper side, and is designed to fit on 35 mm mounting rail (DIN 46277).
- INPUT: programmable via dip switches for 0 - 20 mA and 4 - 20 mA current (with both active and passive connection) or for 0 - 5 Vdc, 1 - 5 Vdc, 0 - 10 Vdc and 2 - 10 Vdc voltage.
- INTEGRATION CONSTANT programmable for scale end from 1 pulse every 27 minutes to 20 pulses per second.
- EXTREMELY SIMPLE CALIBRATION only requiring the use of an ordinary digital tester.
- Two signaling LEDs on the front panel indicate power on and output pulse.
- The self-extinguishing Noryl case is the width of 3 DIN modules and is designed to fit on a 35 mm mounting rail (DIN 46277).
|
Power supply
|
: 115 / 230 Vac +/- 10% 50 / 60 Hz
|
|
Power consumption
|
: 7,5 VA
|
|
Outputs
|
: + 15 Vdc 350 mA and - 15 Vdc 75 mA
|
|
Operating temp.
|
: - 10 / + 60 °C
|
