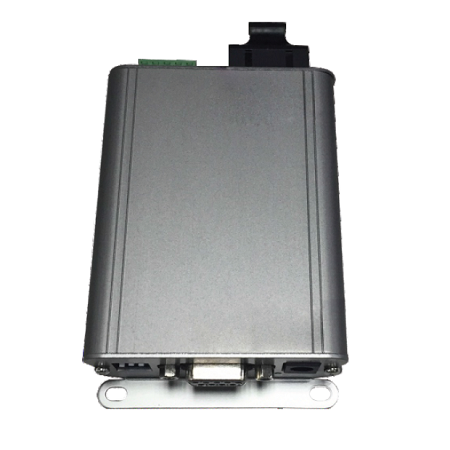

EB-120 Serial to Optical Data Converter

EB-120 is a media converter that can convert one RS-232 and/or one RS-422/485 ports to be transmitted over a single fiber or two fibers. A DIP switch is used to setup two-wire/ four-wire operation mode and to enable internal termination for RS-422/485 port, and to configure RS-232 port to operate in either DTE or DCE mode. EB-120 series are available in type of compact stand-alone box that can meet versatile field installation demands like on desktop and wall-mount.
Talk to Our Experts Download Datasheet

  • Convert one RS-232 and/or one RS-422/485
  • Complies with EIA/TIA-232, EIA/TIA-574 and CCITT V.28 standard s
  • Complies with EIA/TIA-422, EIA/TIA-485
  • Distance Up to 5km with multimode fiber
  • Distance Up to 120km with single mode fiber
  • Clear LED Indications
  • MTBF > 50000 Hours
  • Compact size: 68x101x30mm

  • Convert one RS-232 and/or one RS-422/485
  • Complies with EIA/TIA-232, EIA/TIA-574 and CCITT V.28 standard s
  • Complies with EIA/TIA-422, EIA/TIA-485
  • Distance Up to 5km with multimode fiber
  • Distance Up to 120km with single mode fiber
  • Clear LED Indications
  • MTBF > 50000 Hours
  • Compact size: 68x101x30mm
