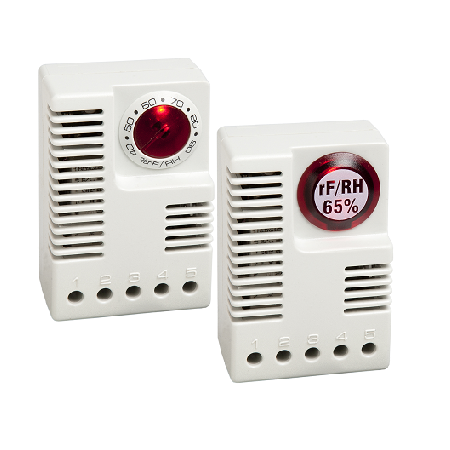

Electronic Hygrostat EFR 012
The EFR 012 electronic hygrostat senses the relative humidity in an enclosure and turns on a heater at the set point, helping prevent the formation of condensation in the enclosure. The integrated LED is lit when the connected device is in operation.
- Adjustable & pre-set relative humidity setpoints
- Compact design
- High switching capacity
- Optical function display (LED)
- DIN rail mountable
- Adjustable & pre-set relative humidity setpoints
- Compact design
- High switching capacity
- Optical function display (LED)
- DIN rail mountable
|
Switching difference (Temperature)
|
: 5 %RH (± 3 %RH tolerance) at +77 °F (+25 °C) and 50 %RH
|
|
Max. reaction time
|
: Approx. 5 sec
|
|
Contact type
|
: SPDT / change-over contact (relay)
|
|
Dimensions
|
: 2.54 x 1.65 x 1.5" (64.5 x 42 x 38 mm)
|
|
Connection
|
: 5-pole terminal, clamping torque 0.5 Nm max.: solid/stranded1 wire - AWG 14 max. (2.5 mm2)
|
|
Housing
|
: Plastic, UL 94V-0, grey (bicolor)
|
|
Storage temperature
|
: +32 to +140 °F (0 to +60 °C) / -4 to +158 °F (-20 to +70 °C)
|
|
Protection type/Protection class
|
: IP20
|
