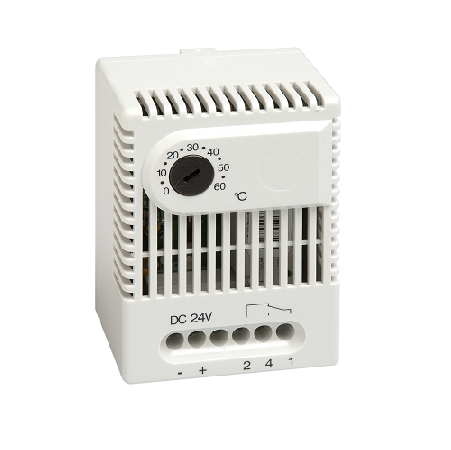

Electronic Thermostat ET011
The ET 011 is an electronic thermostat for regulating high-performance DC 24 V equipment. Heating or cooling equipment, as well as signal devices, can be switched via the SPDT (change-over) contact. A relatively small hysteresis sets the ET 011 Thermostat apart from less accurate mechanical thermostats.
- 16 Amp DC switching capacity
- Low hysteresis
- Wide adjustment range
- DIN rail mountable
- 16 Amp DC switching capacity
- Low hysteresis
- Wide adjustment range
- DIN rail mountable
|
Switching difference (Temperature)
|
: Approx. 5.4 °F ± 1.8 °F tolerance (3 K ± 1 K)
|
|
Sensor element
|
: PTC
|
|
Contact type
|
: SPDT / change-over contact
|
|
Dimensions
|
: 2.54 x 1.65 x 1.5" (64.5 x 42 x 38 mm)
|
|
Connection
|
: 5-pole terminal, clamping torque 0.5 Nm max.: solid wire - AWG 14 max. (2.5 mm²) stranded wire1 - AWG 16 max. (1.5 mm²)
|
|
Housing
|
: Plastic, UL 94V-0, light grey
|
|
Storage temperature
|
: +14 to +140 °F (-10 to +60 °C) / -49 to +176 °F (-45 to +80 °C)
|
|
Protection type/Protection class
|
: IP20
|
