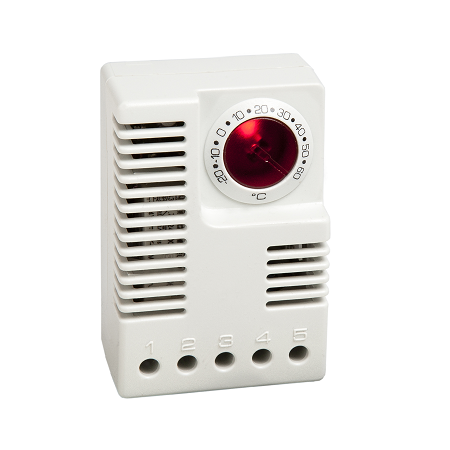

Electronic Thermostat ETL 011

The electronic thermostat is used for controlling heating and cooling equipment, filter fans or signal devices through the Relay SM 010 or a similar device. The thermostat registers the surrounding air temperature and can switch a signal current via an internal relay with a potential free change-over contact. The LED integrated in the adjustment knob shows the closed status of the contact 1-2. When the temperature rises contact 1-2 opens and the LED turns off. In currentless state (no supply voltage) contact 1-2 opens.

Talk to Our Experts Download Datasheet

  • Large setting range
  • Compact design
  • Small hysteresis
  • Optical function display
  • Signal application

  • Large setting range
  • Compact design
  • Small hysteresis
  • Optical function display
  • Signal application

  • Switching difference (Temperature) : 7 °F (4 K) ± 1.8 °F (1 K) tolerance at +68 °F (+20 °C) Reaction time (humidity) : Approx. 5 sec
  • Contact type : SPDT / change-over
  • Dimensions : 2.54 x 1.65 x 1.5" (64.5 x 42 x 38 mm)
  • Connection : 5-pole terminal, clamping torque 0.5 Nm
  • max.: solid/stranded1 wire - AWG 14 max. (2.5 mm2)
  • Housing : Plastic, UL 94V-0, light grey
  • Storage temperature : -40 to +185 °F (-40 to +85 °C)
  • Protection type/Protection class : IP20
