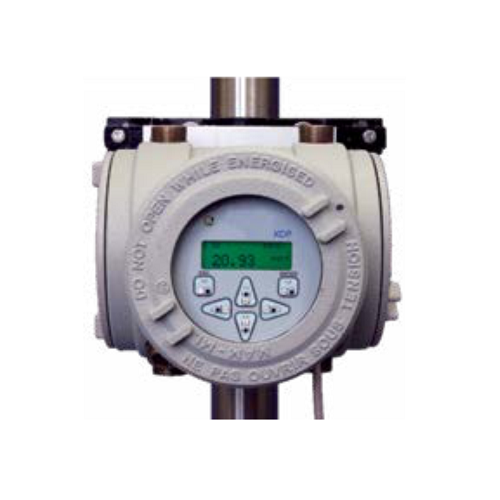

Explosion-proof display - XDP
The XDP explosion-proof display provides the measurement of percent or ppm oxygen or hydrogen gas. The explosion-proof XDP is certified for use in Class 1, Division 1, Groups B, C and D as well as Zone 1 ATEX/IECEX Ex d IIC T6 Gb hazardous areas. The XDP features advanced microprocessor-based electronics, a magnetic, through-the-glass keypad, a universal power supply (magnetic), one 0/4 to 20 mA or 0 to 2 VDC analog output, four process alarms, and a fault alarm.
- Explosion-proof for Class I, Division 1, Group B, C and D hazardous areas, Nema 4X
- Flameproof for ATEX II 2 G Ex d IIC T6 Gb IECEX Ex d IIC T6 Gb IP66
- Magnetic through-the-glass keypad
- Universal AC input, Optional 24VDC input
- 24 VDC power supply for XMO2, XMTC or OXY.IQ
- Software for measurement of percent or ppm oxygen or hydrogen
- Three-curve software for hydrogen-cooled generator
- Programmable process relay contacts
| Input power |
: 85 to 264 VAC, 47 to 63 Hz, 40 W, 24 VDC(±0.2V), 40W |
| Output power supply |
: 24 VDC ±2 VDC at 1.2 Amp |
| Display |
: Four-line, backlit liquid crystal display |
| Display accuracy |
: ±0.25% of full scale |
