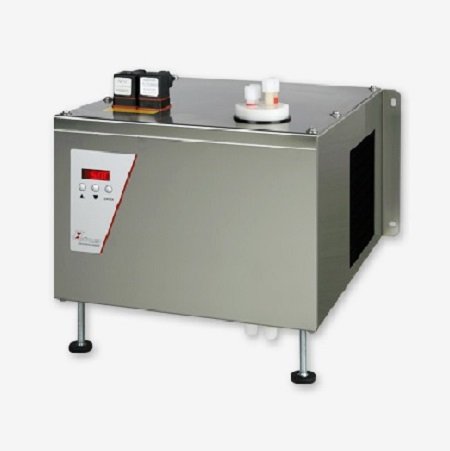

Gas cooler series EGK 1SD

In the chemical industry, petrochemistry or biochemistry, reliable process control relies on prompt and exact determination of the operating parameters. Here, gas analysis is the key for safe and efficient  control of process flows, environmental protection and quality assurance. This benefits controlling flue gas emission in power stations or exhaust gas analysis in automotive engineering, as well as the efficient control of air separators or sterile production and packaging in the food industry. Many of the analysis processes used in these fields require extracting the sample gas. This inevitably also extracts process-related contamination such as particles or moisture. These in turn can impact the measurement results or damage the measuring cells. The sample gas must therefore be conditioned before entering the analyser. The EGK 1SD is a medium duty compressor sample gas cooler. It can be wall-mounted or used as a table-top cooler with up to two gas paths.
Talk to Our Experts Download Datasheet

Compact installation. One or two gas paths. Heat exchanger made from stainless steel, Duran glass or PVDF. Bühler constant control system. Self-monitoring.

Cooling block temperature display. Status alarm. Rated cooling power 320 kJ/h. Dew point stability ± 0.1 °C. CFC-free. FM approved.

Ready for operation after max. 15 minutes
Ambient temperature 5 °C to 50 °C
IP rating IP 20
Electric supply: 115 V, 60 Hz or 230 V, 50 Hz Plug per EN 175301-803
Housing: Stainless steel
Weight incl. heat exchangers approx. 15 kg
