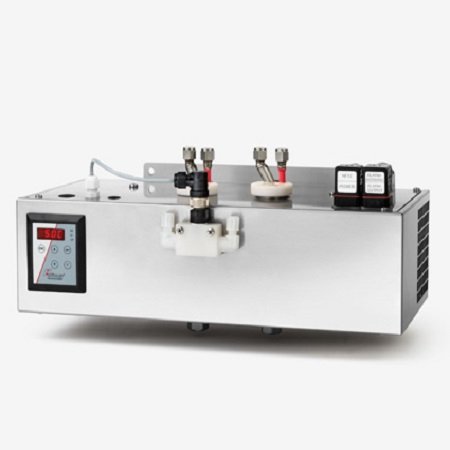

Gas cooler series TC-Double
In the chemical industry, petrochemistry or biochemistry, reliable process control relies on prompt and exact determination of the operating parameters. Here, gas analysis is the key for safe and efficient control of process flows, environmental protection and quality assurance. This benefits controlling flue gas emission in power stations or exhaust gas analysis in automotive engineering, as well as the efficient control of air separators or sterile production and packaging in the food industry. Many of the analysis processes used in these fields require extracting the sample gas. This inevitably also extracts process-related contamination such as particles or moisture. These in turn can impact the measurement results or damage the measuring cells. The sample gas must therefore be conditioned before entering the analyser. The TC-Double series allows you to precisely match the twostage cooling system (series connection) through separate configuration of the cooling block temperatures. This allows the TC-Double to also be operated with built-in pre-cooler.
- FCeEa mtuarerks standard.
- FM approval optional.
- One gas path.
- Heat exchanger made from stainless steel, Duran glass or PVDF.
- Adjustable outlet dew point and alarm thresholds.
- Rated power 270/310 kJ/h, 40 °C/60 °C version.
- Max. ambient temperature 60 °C.
- Dew point stability 0.1 °C.
- Status display and output.
- Cooling block temperatures display.
- Moisture detector connection, analog output, filter, and peristaltic pump optional.
| Ready for operation | : After max. 10 minutes |
| Ambient temperature | : 5 °C to 60 °C |
| IP rating | : IP 20 |
| Packaging dimensions | : Approx. 427 x 300 x 293 mm |
| Housing | : Stainless steel |
| Weight incl. heat exchanger | : Approx. 11.5 kg approx. 15 kg at full expansion stage |
