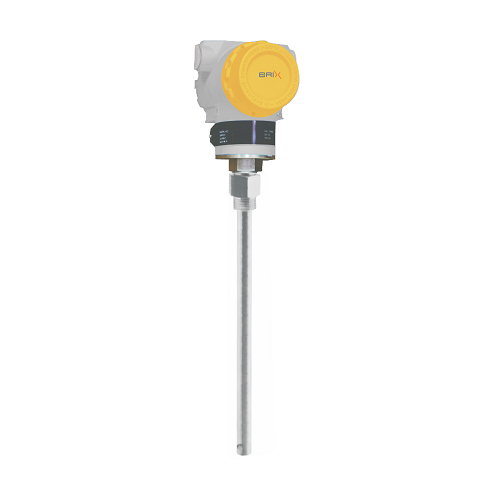

Guided Wave Radar – RGW40

Brix series RGW40 is a 4-wire TDR-Sensor with single rod or coaxial probe for continuous level measurement and point level detection in liquids, with analog and switching output.

Talk to Our Experts Download Datasheet

Unmatched price and performance ratio
Precise continuous level measurement and reliable point interchangeable without any special tools or welding
Fully modular probe design, i.e. the probe types are interchangeable without any special tools or welding
Complete galvanic isolation on of device electronics from its inputs/outputs and the tank potential (no problems with electrochemical corrosion protection)
Highly robust measurement due to 4-wire design and innovative signal analysis and disturbance signal suppression

Supply Voltage : 12 to 30VDC (reverse-polarity protected)
Current Consumption : <70mA at 24VDC (no burden)
Accuracy : ±3mm or 0.03% of measured distance whichever is greatest
Ambient temperature : operation: -25°C to +80°C
Application temperature : -40°C to +150°C
Housing rating : IP 66
