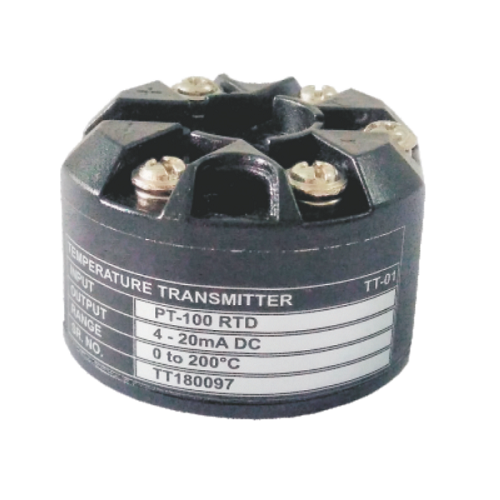

Head / Rail Mount Temperature Transmitter – TT-01

Brix series TT-01 are head mount type temperature transmitters used for various industrial applications. It can accept input from RTD, J & K type of thermocouples & temperature signal is transmitted in the form of electrical 4 – 20 mA signal. Span / Zero adjustments are easily accessible. These transmitters are suitable for any make of sensor.

Talk to Our Experts Download Datasheet

  • On-line measurement
  • 2 wire system
  • 4-20 mA DC output
  • Head Mount Transmitter
  • Cold junction Compensation for thermocouple input

  • Power Supply : 24 V DC
  • Output : 4 – 20 mA DC (2 Wire Non-Isolated)
  • Accuracy : +/- 0.25% of F. S.
  • Power Consumption : < 40 mW

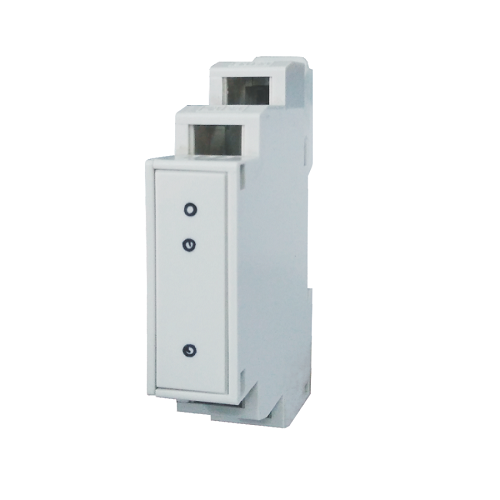

  • Mounting : DIN Rail / Head Mount
  • Ambient Conditions : Temperature -20 to 55 °C / Humidity 5 to 95% non condensing
  • Certification : CE
