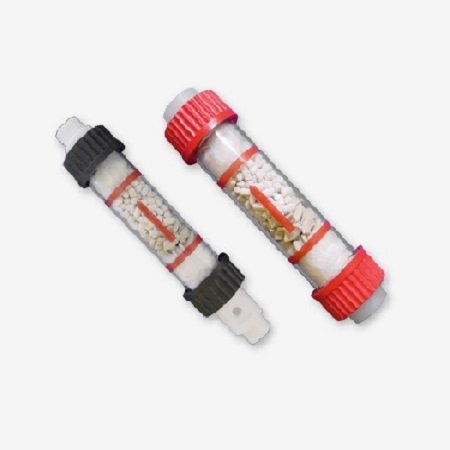

Housing for Absorption Filters ADF-170 / ADF-300 (Ammonia Filter)

Gas analysis is a complex field. The sample gas to be analysed must be extracted and handled under quite diverse conditions to yield representative and reliable analysis results. There frequently is a need to remove gaseous components from the sample gas through ad-/absorption. For applications where the incidence of interfering components may fluctuate or the materials must have a long lifetime, the ADF-170/300 model housings are the top choice.
Talk to Our Experts Download Datasheet

  • All-purpose, in various sizes.
  • Available with high-efficiency NH3 absorber filling.
  • Up to 38.000 hours life time for NH3 absorber.
  • Quick and easy maintenance (tool-less).

Quick and easy maintenance (tool-less). Chemical and temperature-resistant materials. Condensate output optional.

Filter glass Duran glass
Temperature max. 150 °C (gas) / 100 °C (ambient)
Pressure max. 2 bar abs. at 150°C
Fill volume approx. 125 ml for ADF-…-170 approx. 250 ml for ADF-…-300
Material – gasket Viton
