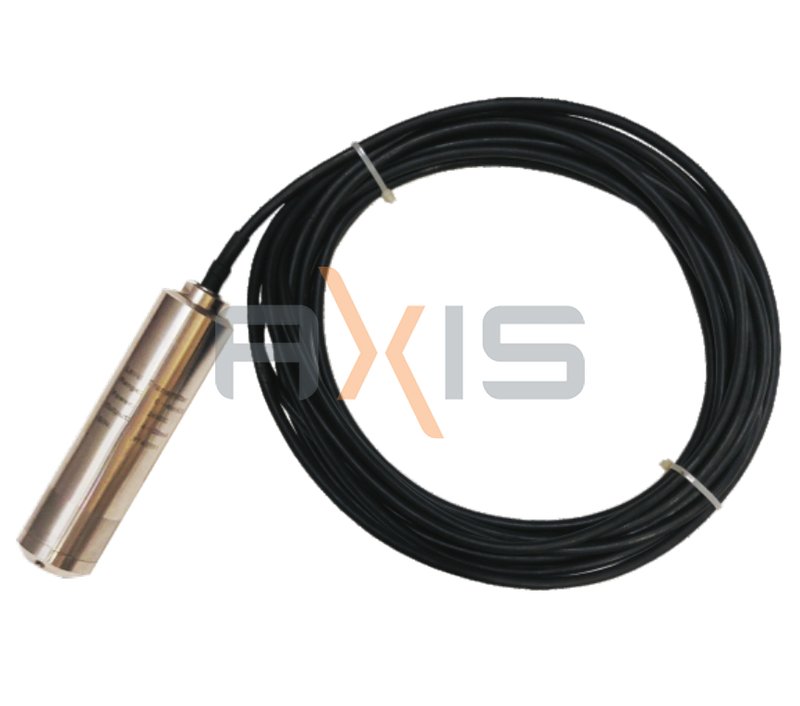

Hydrostatic Level Transmitter – HSLT-22

Brix series HSLT-22 are electronic Level transmitters for fast, easy & trouble free operation. These transmitters are designed to cover a majority of industrial applications. Electrical output in the form of 4-20 mA DC proportional to level is transmitted with operating voltage of 24 V DC. All wetted parts are stainless steel. A robust design for applications in wastewaters and sludges or a design free of metal with long-term stability for usage in salt water is also available.

Talk to Our Experts Download Datasheet

  • Piezo Resistive Sensor
  • Measuring Range up to 500 mtrs.
  • Pressure Range 0.4 to 50 bar
  • Ingress Protection IP 68
  • Overload-resistant
  • Simultaneous measurement of level and temperature with
  • optionally integrated PT100 temperature sensor
  • 4 to 20mA output
  • Suspension clamp, cable gland (Optional)
  • Handy & maintenance free
  • Reliable & cost effective

  • Sensor Type : Piezo Resistive
  • Max. Measuring Range : 0 to 500 mtrs
  • Pressure Range : 0.4 to 50 Bar
  • Output : 4 – 20 mA DC, 2 wire
  • Power Supply : 24 V DC, External
  • Case : SS 316 with IP 68 Ingress Protection
