IMAGEPro

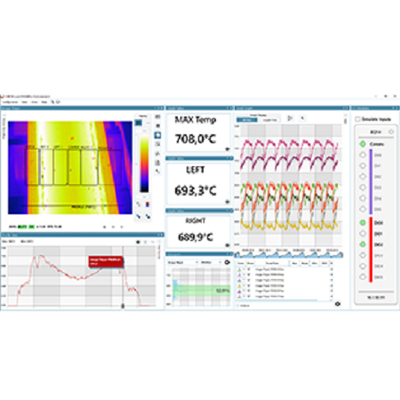

The innovative IMAGEPro software is an advanced image processing software for controlling, monitoring, analyzing, and capturing imager data.
IMAGEPro is a Windows PC software system that enables configuration of the imager, display properties, and advanced temperature analysis options and supports multiple simultaneous imagers. Free 30-day trial available for extensive testing.
Able to monitor and control up to sixteen images, IMAGEPro offers real-time analysis for thermal imager ranges. Giving users exceptionally detailed control over their thermal imaging measurements, IMAGEPro enhances application processing.

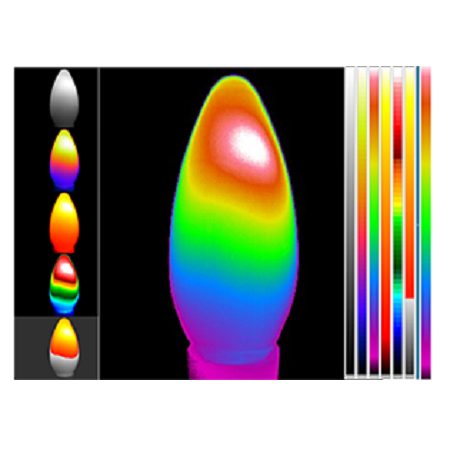

- COLOUR PALETTES: 6 color palettes with 5 isotherms.

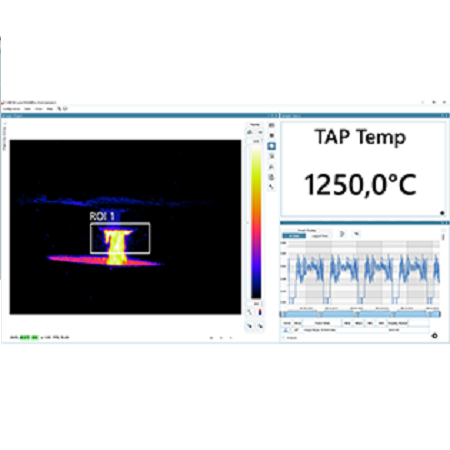

- REGIONS OF INTEREST: 100 regions of interest per camera available using points, rectangle, ellipse, free drawn, or profile lines.

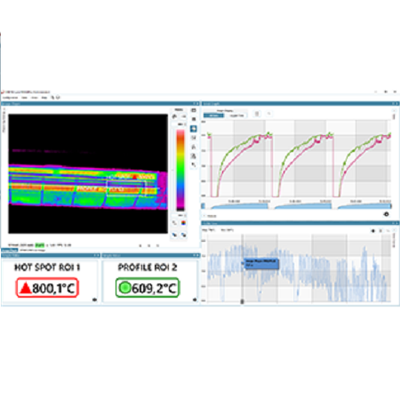

- GRAPHS: Profile line, histogram, trend, and gauge graphs.
- DATA STORAGE AND EXPORT: MS SQL Server or SQLite database storage and export to CVS, XML.
- ADVANCED TRIGGER SYSTEM: Allows actions to be performed when values “trigger” a condition, such as send an I/O signal or start recording.
- PRE-RECORDED CACHE: Allows recording of up to 10 seconds before recording is triggered.
- ANALYSIS CORRECTION: Ignores frame values above or below a threshold when displaying analysis results.
- USER MANAGEMENT LEVELS: Restricts user access to the software through 3 different roles: Guest (view only), Supervisor (change views and display settings), and Administrator (full access including changing imager settings).
- INTEGRATED MODBUS SUPPORT (MASTER/SLAVE): Users can configure data values in the system to be transmitted or received via Modbus TCP by mapping IMAGEPro data outputs to Modbus register numbers.
- INTEGRATED I/O SUPPORT: Directly communicates with Moxa I/O Logik and Beckhoff CX9001/CX8090 modules. Up to 16 I/O modules can be connected. Users can configure data values in the system to be transmitted or received via I/O by mapping IMAGEPro data outputs toI/O module pins.
- MULTIPLE ALARM OPTIONS: Visible, acoustic, and via I/O interfacing.
- EXTENSIVE FUNCTIONALITY - extensive control and analytical functions for exceptional process control, including multiple free defined ROIs (regions of interest).
- FLEXIBLE COMMUNICATIONS - enables the exchange of information using a simple cross-platform Modbus TCP protocol, analogue signals or alarm output via I/O modules.

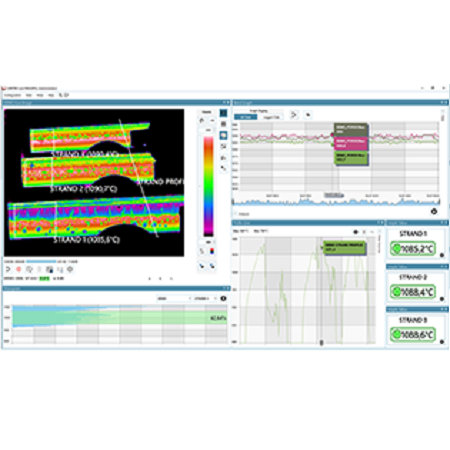

- REAL-TIME RESULTS & ANALYSIS - powerful image processing allows for real-time monitoring and analysis of the thermal
- information provided by up to 16 imagers.
- FLEXIBLE INTERFACE LAYOUT - allows complex configuration and arrangement of windows by the user across multiple monitors, which can be stored and reopened on request and opens automatically on restart.
- ADJUSTABLE WINDOWS - can be docked, re-sized and made floatable to suit specific needs and stored/loaded in/from a full
- configuration.
- TOOLS & DISPLAY - can be displayed and hidden as needed to maximise screen space.
- USER LEVELS - ensures only those with password access can change the system configuration.
Please do download the datasheet for more info.
