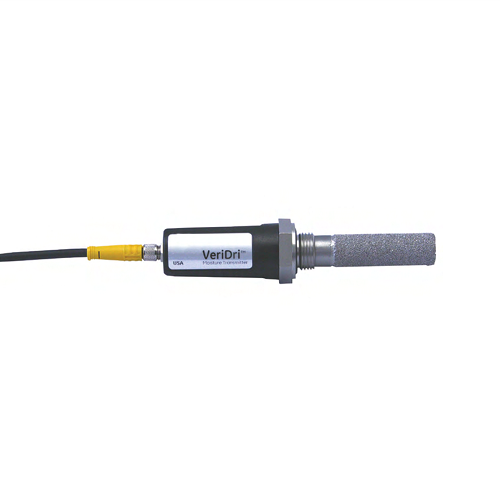

Moisture Transmitter - VeriDri™
The VeriDri moisture transmitter provides dryer manufacturers and other OEMs with the means to make simple, accurate and reliable moisture measurement of their gas at a competitive price.
VeriDri is a loop-powered 4 to 20 mA output transmitter, offered in a number of factory-configured output ranges covering an overall moisture range of -130°F to 70°F or -110°C to 20°C dew point temperature. It is also available in a number of PPMv moisture output ranges with an overall range of 0 to 10,000 PPMv moisture, when operating at a constant pressure. Operating pressure information must be provided to the factory at the time of order placement.
- Low-cost
- Thin-film aluminum oxide moisture sensor technology
- Microprocessor-based, all-digital technology for reliable operation
- Compact size
- Type 4X/IP67
- Loop-powered 4 to 20 mA output
- -130°F to 70°F (-110°C to 20°C) dew point temperature/0 to 10,000 PPMv moisture (with constant pressure) overall range capability
- National Institute of Standards and Technology (NIST) traceable calibration
| Operating temperature |
: –40F° to 140°F (–40°C to 60°C) |
| Storage temperature |
: 158°F (70°C) maximum |
| Power |
: 7 to 28 VDC (loop-powered, customer supplied) |
| Output |
: 4 to 20 mA |
