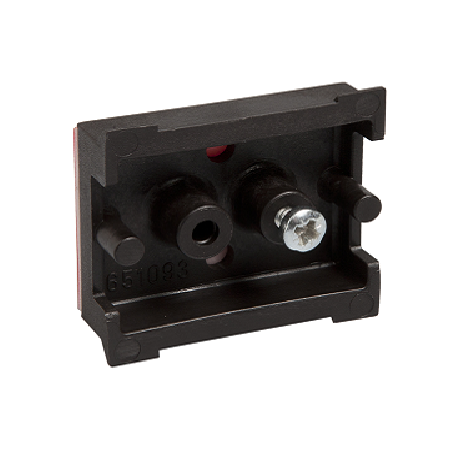

Mounting Aid Stegofix Plus SFP 095
STEGOFIX PLUS allows for a quick and easy direct mounting of smaller devices where DIN Rails may be inconvenient, i.e. in cabinets and enclosures. It is suitable for devices with a DIN clip of 66m/2.6” width max., replacing the conventional 35 mm/1.4” DIN rail. STEGOFIX PLUS is available in three different mounting versions –for screw mounting with 25 mm/98” pitch, with high-performance adhesive tape or rubberized neodymium magnets – offering the right mounting method for almost any application
- Alternative to 35 mm DIN rail
- Simple installation
- For small, DIN rail mountable devices
Optional
- Screw mounting
- Self-adhesive tape mounting
- Magnet mounting
|
Applications
|
: For devices designed for DIN rail mounting on 35 mm DIN rail (according to EN 60715), max. clip width 66 mm (2.6”)
|
|
Material
|
: Plastic according to UL 94V-0, black
|
|
Operating temperature
|
: -31 to +167 °F (-35 to +75 °C)
|
|
Dimensions
|
: 2.8 x 1.6 x 0.6” (71 x 40 x 15 mm)
|
|
Approvals
|
: EAC
|
