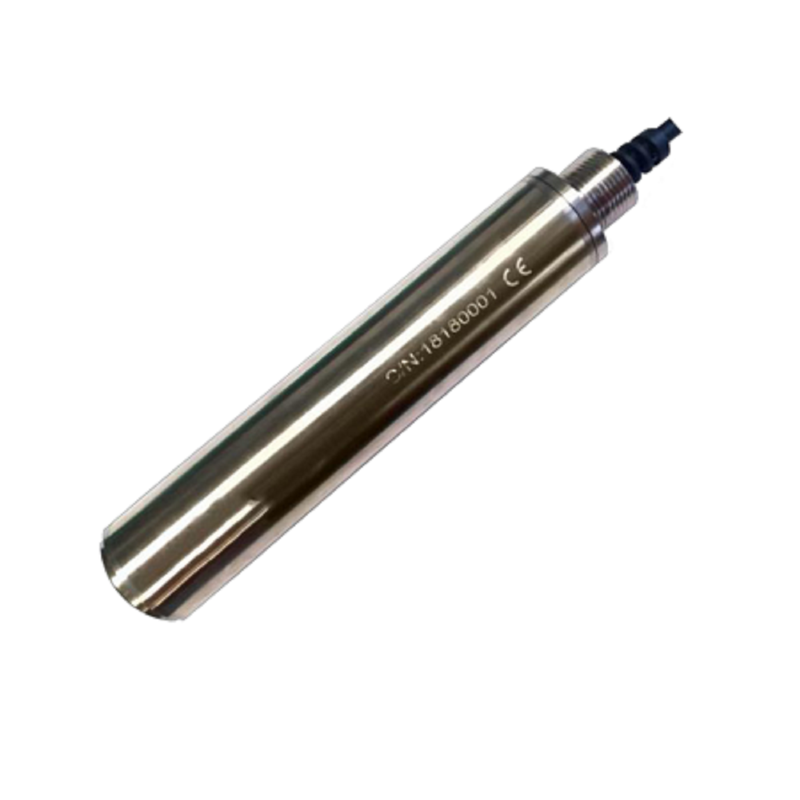

Oil in Water Sensor
SMART ABOW is a new generation of immersion sensors for the measurement of oil or hydrocarbons in water based on the UV fluorescence principle. When excited by a light beam at a specific wavelength, some compounds re-emit light at a longer wavelength. Since there is a very limited number of chemicals such as PAH that have fluorescence signatures, this method gives a highly selective measurement with much higher sensitivity than the conventionally used infrared-based technology. This makes it possible to determine even the slightest traces of PAH’s.
• Measuring Principle : Light Source: Xenon flash lamp + filter(254nm) Detector: Photo diode + filter (360nm) Light Source Fluorescence
• Interface : RS485 Modbus RTU
• Output : 4 to 20 mA
• Housing Material : 316L, titanium is optional; >IP68 Submersible
• Dimension : Dia. 2” (50.8 mm), Length 9” (229 mm)
• Weight : 6 lbs (2.8 kg) with 30” Cable
• CE Marking : EN 61326-1:2013 Electromagnetic Compatibility EMC
• A reliable and low maintenance measuring system of UV fluorescence achieves this goal
• Automated mechanical wiper is available for Surface cleaning & air bubble removal (Optional)
• Robust & Waterproof(lP68) Digital sensor: Modbus RS-485
• Factory pre-calibration for easy setup and field calibration for more accuracy
• Fully compatible with PC software view for easy setup and data logging
• Industrial Wastewater
• Municipal & Sewage Wastewater
• Drinking Water
• Surface Water Monitoring
• Sanitation Network
• Sea Water
