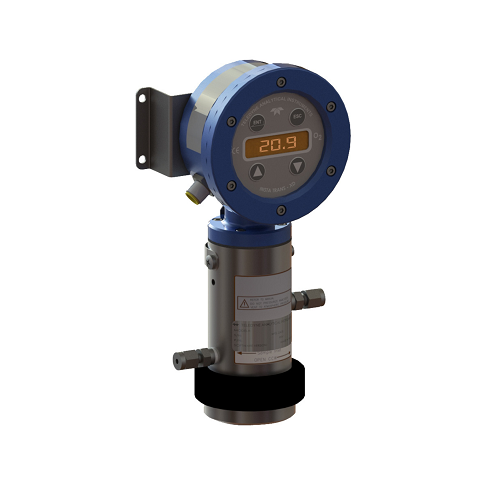

Oxygen Transmitter - InstaTrans-XD
The flexibility, simplicity and robustness of the proven universal InstaTrans Oxygen Transmitter is carried on to the next-generation Model InstaTrans-XD. The new platform continues to offer the benefits of the legacy transmitter
The InstaTrans-XD utilizes a design to meet the requirements of NEMA-4 (IP-66) levels of ingress protection with wetted 316SS cell compartment body and fittings. The transmitter head contains the electronics and user display interface including 4-button design to access functions.
- 2-wire transmitter form factor
- Trace or percent oxygen analysis – settable ranging from 0-10 ppm to 0-25%
- Insta-trace capability for fast recovery from new sensor installation (optional)
- Accepts most Teledyne industrial micro-fuel cells
- Intrinsically safe design for hazardous area or nonhazardous installations
| Ranges |
: Single-range, user-settable, 0-10 ppm to 0-25% |
| Operating Temperature |
: 32 – 122°F (0 – 50°C) |
| Display |
: 4.5-digit LCD |
| Power |
: 9 – 24 VDC, loop-powered |
