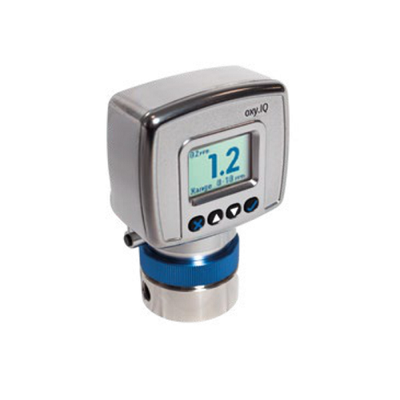

Oxygen Transmitter - oxy.IQ
Highly reliable and cost effective oxygen measurement, all in a compact intrinsically safe package
Designed for installation flexibility, the oxy.IQ is a two wire loop powered transmitter with 17 percent- and ppm-level oxygen ranges. oxy.IQ combines proven sensor technology, an intuitive user interface, and a compact design in an intrinsically safe package perfect for oxygen measurement in a variety of background gases.
- Compact and innovative design, easy installation and system solution flexibility
- Built-in microprocessor, intuitive user interface to easily select range, trim outputs and perform calibration
- User-selectable ranges, calibration, sensor diagnostics with keypad simplifies programming
- Maintenance-free device
| Power requirements |
: 24 to 28 VDC at 50 mA |
| Sample pressure |
: Vented to atmosphere during operation and calibration |
| Sample flow rate |
: 1.0 SCFH (500 cc/min) recommended for process units |
| O2 sensor operating temperature |
: 32 to 113°F (0 to 45°C) |
