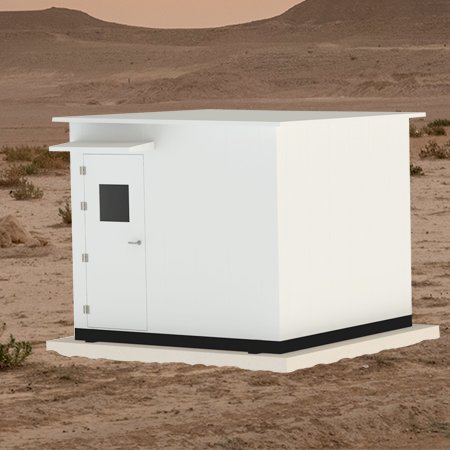

Passive Cooled Shelter
WHAT IS PASSIVE COOLING???
Passive cooling technology is a building design approach that creates indoor thermal comfort without energy consumption.
The environmental conditions are useful to generate indoor thermal comfort.
In the desert area where night and day temperature difference is more.
Onsite energy will utilize in the cooling process in the passive cooling system.
PRINCIPLE AND WORKING OF PASSIVE COOLING
This passive cooling system consisting of a memory heat unit and two heat exchangers.
1. During day time (T ambient > T inside) ------ Inside Circuit activated
Inside heat is absorbed by the internal heat exchanger and stored in the memory heat unit.
2. During the Night-time (T ambient < T Memory unit) ------ Outer circuit activated
Stored heat will be rejected in the ambient via an external heat exchanger.
3. During day time (T ambient > T Memory unit)
Heat transfer is stopped due to the diode nature of the system.

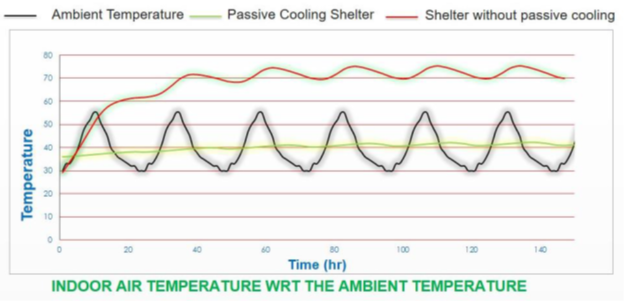

The behavior of the system is shown in the below graph when
(MAX & MIN Ambient Temperature day/night = 55/30°C)
- 10-15°C Cooler then environment (Depends upon DAY/NIGHT temperature difference).
- No bacterial growth inside the system.
- No supervisor needed for it.
- Plug and play installation system.
- No extra cost for hazardous areas.
- 15 years of guarantee.
- More efficient than Tradition Passive cooling system.
- No moving parts
- Zero maintenance cost
- Zero power
- Zero running cost
As per Customer's Requirement.
