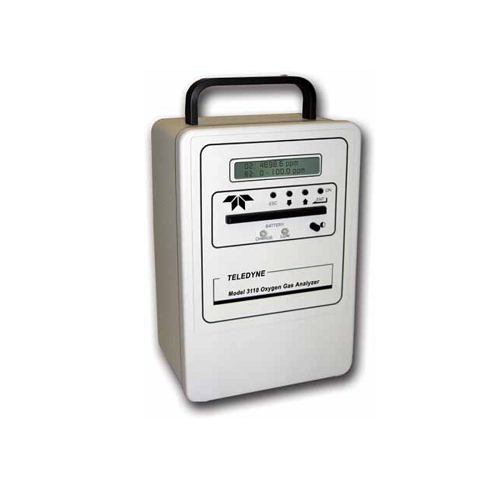

Portable Oxygen Analyser - Series 3110
The Model 3110 represents the new generation of portable trace and percent oxygen analysis capability. The 3110 combines a rugged, portable Analyser design with the high reliability of Teledyne trace and percent level sensors. This ensures highly accurate ppm/percent oxygen readings in a variety of background gases - including hydrocarbons. The batteries supply at least 100 hours of continuous power to the Analyser, with a low-battery indicator LED. The Analyser includes quick-disconnect fittings to take measurements without hassle and can be equipped with an external sample system. The micro processor based electronics provide accurate, high resolution readings and easy-to-use features.
- Oxygen Measurement in any Back Ground matrix.( even in Acidic gas & HC mixture).
- Standard 3 selective range with auto ranging and Range ID.
- All variant has Display as standard. Inbuilt.
- Lowest Measuring Range ; on 0-1 PPM with LDL 10PPB. Response time <90sec T90, on FS of 0-1PPM.
- Available in almost 20 variants both for Safe area and hazardous area. Ex db IIB+H2 T6..T5 Gb and CCOE/PESO.
- Available with All type of Sensor technology Micro fuel Cell, Paramagnetic, & Zirconia.
- Available with Standard RS232 with Self diagnostic.
- Portable and online available.
| Operating Temperature |
: 32 to 104°F (0 to 40°C) |
| Reproducibility |
: ±1% at constant temperature |
| Sensor Type |
: Micro-fuel Cell |
| System Power |
: NiCad batteries, AC adapter included for battery charging 110/220 VAC 50/60 Hz, 0.25A |
