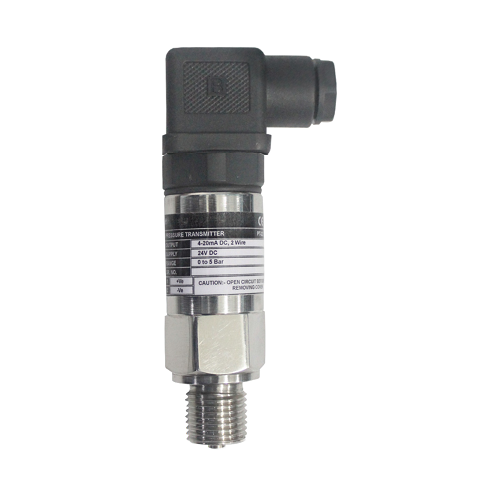

Pressure Transmitter - PT-22

Brix series PT-22 are Digital Pressure Transmitter for fast, easy & trouble free operation. These transmitters are designed to cover the majority of industrial applications such as clear Gases & Liquids. Electrical output is in the form of 4-20 mA DC proportional to the Input Pressure. All wetted parts are stainless steel & hermitically welded.

Talk to Our Experts Download Datasheet

  • Piezo Resistive Sensor
  • Measuring Range -1 to 700 Bar
  • Handy & Maintenance Free
  • Reliable & Cost Effective
  • Ingress Protection IP 65
  • Also available with Display

  • Sensor Type :  Piezo Resistive
  • Pressure Range : AP URL : From 0.1885 to 300 psi & GP URL : From 0.1885 to 10000 psi
  • Power Supply : 24V DC Two Wire Loop Powered / 12 to 36V DC
  • Output : 4 to 20 mA DC, 0 to 10 V
  • Output Load : Max 600 Ω
  • Process Temperature : -20 to 120 °C max
  • Enclosure : SS 316 with IP 65 Ingress Protection
  • Area Classification : Field Mount Weather Proof IP65
  • Certification : CE
