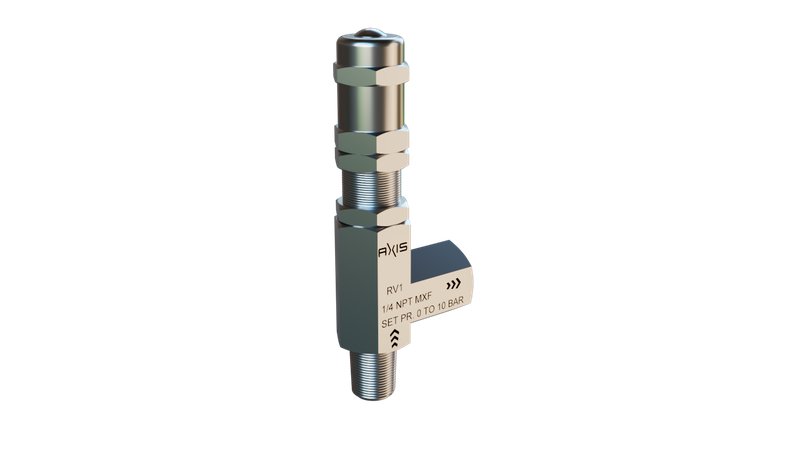

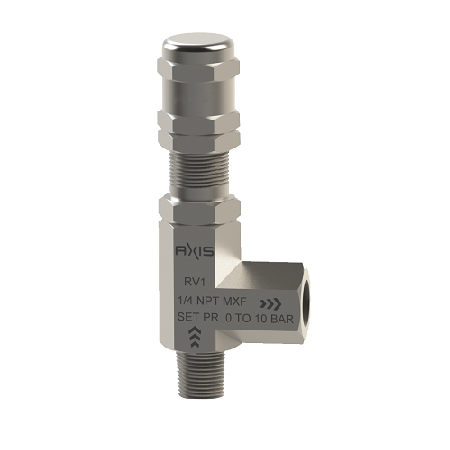

Relief Valve - Adjustable (RV1)
Axis Relief Valve RV1 is designed to deliver continuous Uni-directional flow control to further system and provide Uni-direction safety at predefined level. It is mainly used in instrumentation sample handling system for all type of Gas media application (Specially for Hydrogen). Used in Oil and Gas, Refinery, power, chemical pharmaceutical, Pulp and any type of process industries.
Many features of the RV1 make it ideal for wide range of applications controlling Uni-direction flow control and safety for gas media. It has wide operating range up to 20 bar and up to 220°C media temperature can be sustained
- Economical
- Inline installation
- Less maintenance
- Uni-directional safety Relief
- Used up to 20 bar and 220°C media temperature
- Highly reliable for continuous operation
- Designed for precise control
| Connection | : 1/4” NPT (M) x 1/4” NPT (F) |
| Dimension | : Refer Datasheet |
| Seat Material | : Soft-seated Viton / Kalrez |
| Mounting | : Line mount |
| Body Material | : SS 316 / CF8M (Cast) |
