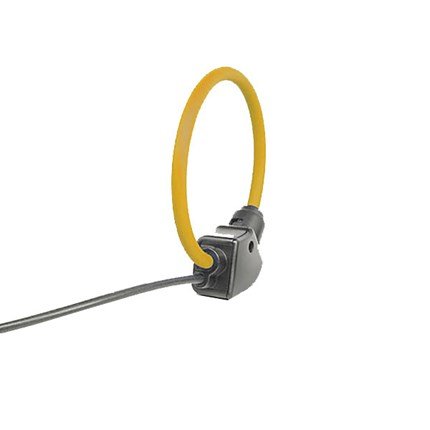

Rogowski Coils RC150
An air-cored toroidal winding is placed around the conductor, the magnetic field produced by the current induces in the coil a voltage proportional to the rate of change of current. Integrating this voltage the output become proportional to the current (as for a current transformer). Coil length variates from 25 to 300 cm for a cord diameter up to 8 mm.
- The junction point is insensitive to both the position of the internal conductor and to currents carried by external conductors.
- Coil and cable shielded against electromagnetic noise.
- Limited access applications.
- Non-Intrusive Current Measurement.
- Very high current monitoring.
- Harmonics and transients monitoring.
- DC ripple measurement.
- Power monitoring and control systems.
- Measuring devices, lab instrumentation.
- Welding machine control.
|
Coil lenght
|
: From voltage circuit
|
|
Coil diameter
|
: 1,5 VA - 1 W
|
|
Material
|
: UL94-V0
|
|
Operating Temperature
|
: -30..+80°C
|
