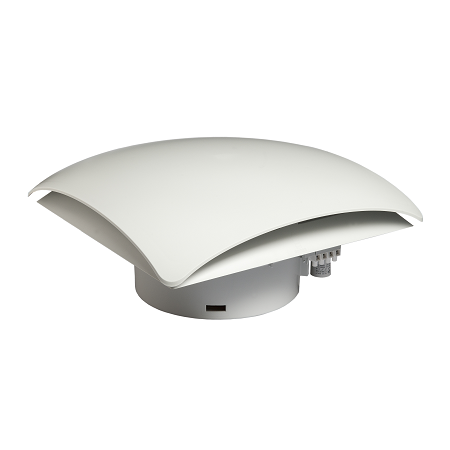

Roof Fan Filter RFP 018 | 177 - 338 CFM
Roof filter fans and roof exhaust filters are used in enclosures from which warm air must be diverted due to increased heat development. The ready-to-connect and low-noise roof filter fan is used to expel warm air from within the enclosure. Alternatively, the roof exhaust filter provides passive ventilation. The RFP 018 series come in two versions: one utilizes four small axial fans, improving reliability and maintaining continuous operations even if one of the fans should fail; the second uses a larger single high capacity fan.
- Very low noise
- Minimal mounting depth
- High air volume
- High reliability
- Time-saving installation and mat exchange
- Very low noise
- Minimal mounting depth
- High air volume
- High reliability
- Time-saving installation and mat exchange
|
Axial fans, ball bearing
|
: Service life 50,000 h at +25 °C (+77 °F), 65 % RH
|
|
Material
|
: Synthetic fiber with progressive construction, temperature resistant to 212 °F
|
|
Connection
|
: 3-pole clamp, AWG 14 (2.5 mm²), clamping torque 0.8 Nm max
|
|
Operating temperature
|
: Dependent on fan type
|
|
Protection class
|
: I (grounded) / IP32
|
|
Approvals
|
: GOST TR (all), VDE (AC 230 V only); UL intended
|
