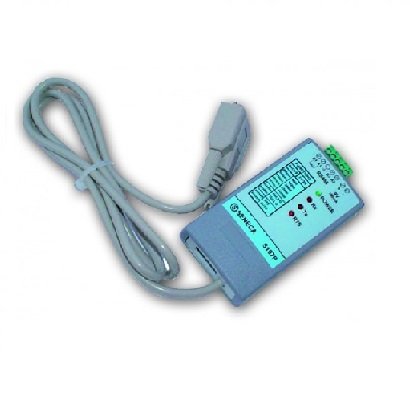

RS232↔RS485/422 serial converter , desk version S107P
S107P allows a transparent conversion and isolation of RS485/ RS422 serial line into RS232 and viceversa. The RS485 and RS422 interfaces are available on terminals.
The RS232 through a cable with DB9 female connector (included). 230V network power supply included into the box.
The RS232 through a cable with DB9 female connector (included). 230V network power supply included into the box.
S107P allows a transparent conversion and isolation of RS485/ RS422 serial line into RS232 and viceversa. The RS485 and RS422 interfaces are available on terminals.
Power supply : 115 / 230 Vac +/- 10% 50 / 60 Hz
Power consumption : 1,5 VA Galvanic separation supply // input // output 3500 Vac
Input : for Pt100 2/3 wires thermoprobes
Input : 3 ranges pre-calibrated 0-100, 0-200 e 0-400 °C
Current output : selectable via DIP-switches between 0-20 and 4-20 mA
