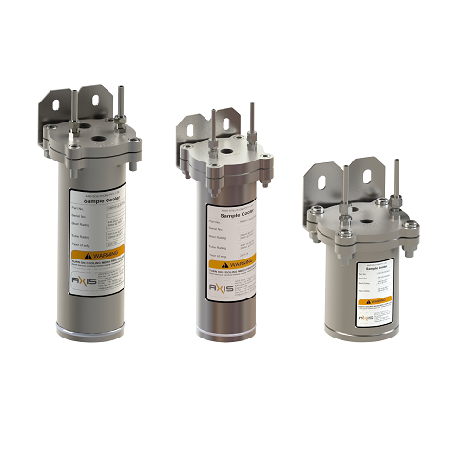

Sample Cooler (HBRIX)

The Sample Cooler is a compact unit specially designed as per American Society of Mechanical Engineers (ASME) Standard and recommendations to handle high pressure and high temperature applications. This is the most efficient and cost effective sample cooler. The SS 316 (Optional Inconel) sample coil is single continuous length without any Joint. The shell is SS 304 (Optional SS 316 and Inconel) complete including the mounting bolts and bracket. The shell is removable type for inspection and cleaning Purpose without disconnecting sample line. Sample Cooler is used to take samples of gas, water or steam from boilers at high temperature and pressure. The cooling water injected from the bottom of the shell will counter the flow of sample directing from the top, condenses the sample, and cool hot fluids efficiently to enable safe sampling.

Talk to Our Experts Download Datasheet

  • Corrosion Resistance Material
  • Safe And Accurate Sampling
  • Maintenance free design
  • Removable Shell
  • Dual Helical Coil
  • Flange with gasket type design to reduce assembly time

  • Compact Design
  • Minimum cooling water consumption
  • No leakage up to define range
  • Wide range for different operation of temperature and pressure
  • Long life cycle
  • Cooler calculation provided for specific stream for future

  • Sample : Gas, Steam, and Water
  • Shell Material : SS 304 / SS 316 / Alloy 625 (Inconel)
  • Tube Material : SS 316/ Alloy 625 (Inconel)
  • Mounting : Clamp provide with each cooler for mounting
  • Dimensions : Refer Datasheet
