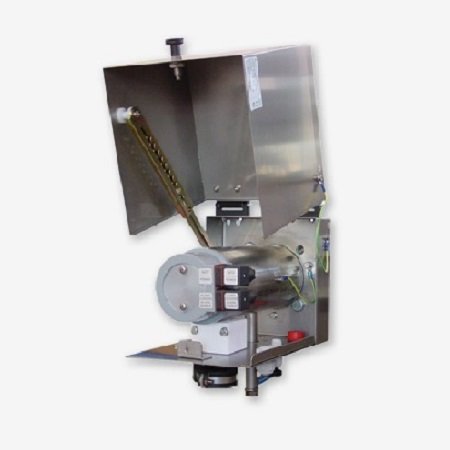

Sample gas probe GAS 222.31 Ex2
In many applications gas analysis is the key to safe and efficient control of process flows, environmental protection, and quality assurance. In the extractive gas analysis, the location of the gas sampling point is crucial for the reproducibility and accuracy of the analysis results. The specific filter capacity, corrosion resistance, and functional equipment requirements for the probe arise from the composition of the sample gas. However, operating costs are also an important criterion in the selection, as the sampling points are frequently located at hard to access points in the system. Effective particle filter backwashing options and low maintenance characterize the extensive GAS probe series.
- Versions with Atex and IECEx approval.
- Heated probe with shut-off valve, upstream filter, and weather hood.
- The probe body and the area around the screw connection for the heated sample gas line are completely insulated.
- The heater is self-regulating to approx. 120 °C (T3)/70 °C (T4) with low-temperature alarm.
- For dust loads up to 200 g/m³.
- This probe is suitable for uses in explosive areas.
| Ambient temperature without accessories | : -20 to +80 °C |
| Max. gas inlet temperature | : +195 °C (T3)/+130 °C (T4) |
| Electrical data | : Probe: 230 V, 150 W, 50/60 Hz, 115 V, 150 W, 50/60 Hz |
| Max. operating pressure | : 6 bar |
| Material | : 1.4571; ball valve 1.4408 |
